Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 100V AC,DC |
| Rated current | 3A AC, DC |
| Contact resistance | 15m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | PBT UL94-V0(2) |
| SMT Wafer | LCP UL94V-0 |
| Terminal | Phosphor bronze,Tin plated |
Drawing
Rosh
MSDS



| Circuits |
Plug Housing |
Receptacle Housing |
| 2 |

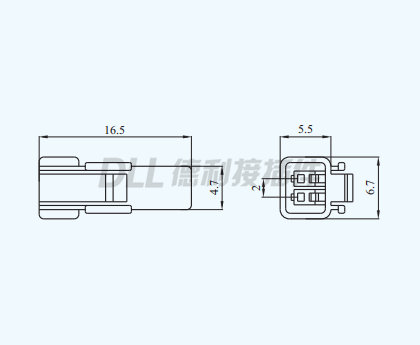

DL20023-2Y(JWPF-2Y) ![]() |

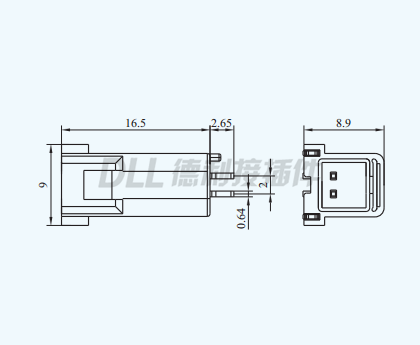

DL20023-2AWB(JWPF-2AWB) ![]() |
| 3 |
DL20023-3Y(JWPF-3Y) ![]() |

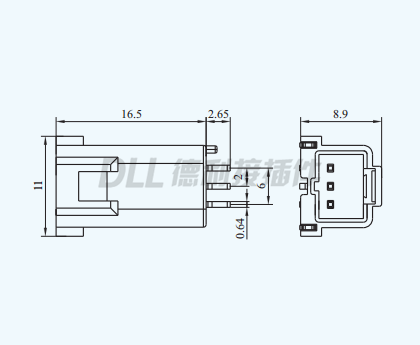

DL20023-3AWB(JWPF-3AWB) ![]() |
| 4 |

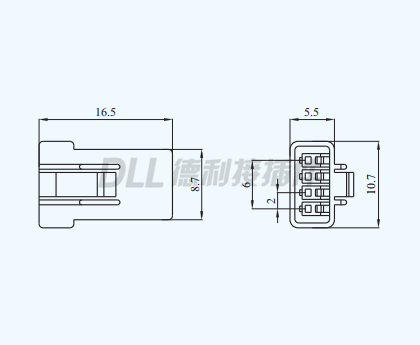

DL20023-4Y(JWPF-4Y) ![]() |

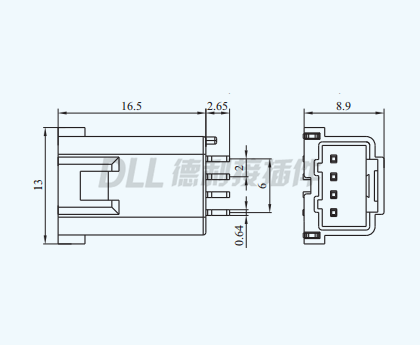

DL20023-4AWB(JWPF-4AWB) ![]() |
| 6 |

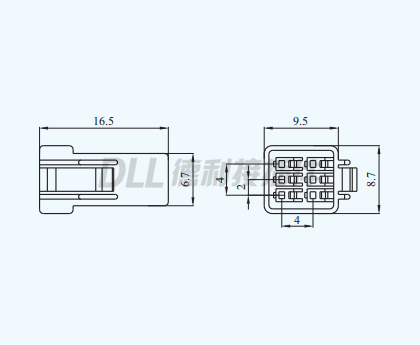

DL20023-6Y(JWPF-6Y) ![]() |

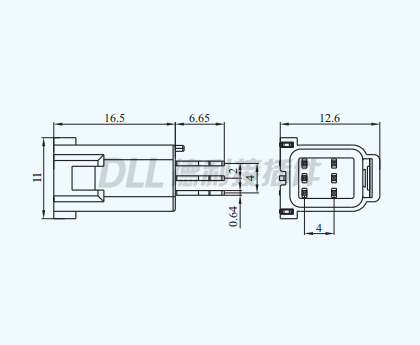

DL20023-6AWB(JWPF-6AWB) ![]() |
| 8 |

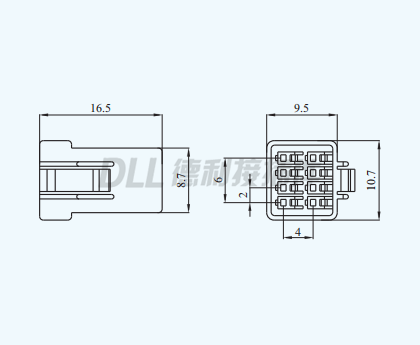

DL20023-8Y(JWPF-8Y) ![]() |
DL20023-8AWB(JWPF-8AWB) ![]() |
| 10 |

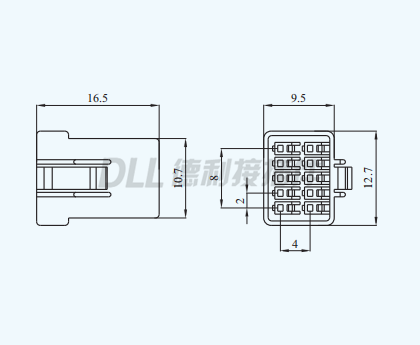

DL20023-10Y(JWPF-10Y) ![]() |

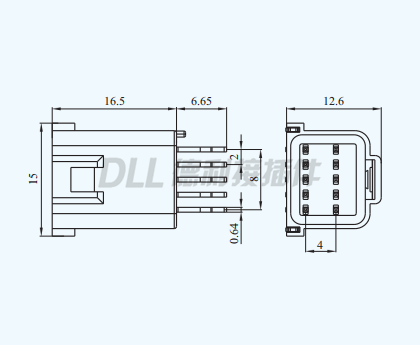

DL20023-10AWB(JWPF-10AWB) ![]() |
| 12 |

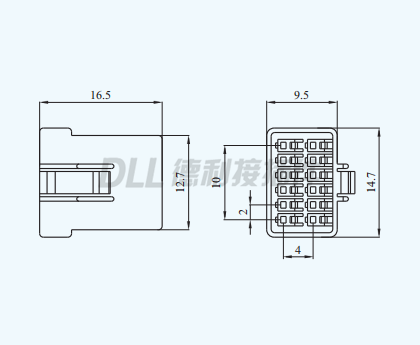

DL20023-12Y(JWPF-12Y) ![]() |

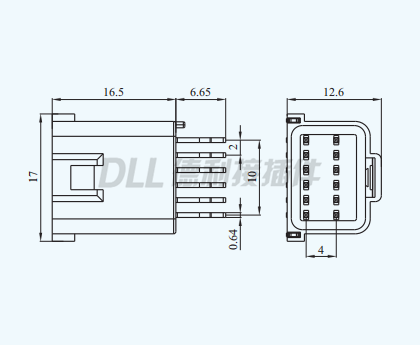

DL20023-12AWB(JWPF-12AWB) ![]() |
| 14 |

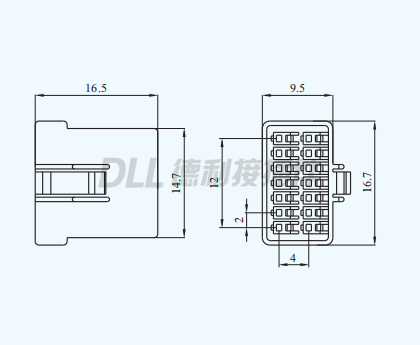

DL20023-14Y(JWPF-14Y) ![]() |

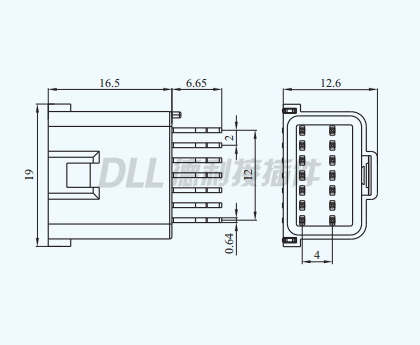

DL20023-14AWB(JWPF-14AWB) ![]() |
