Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 50V AC，DC |
| Rated current | 1A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 100M min |
| Withstand voltage | 500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| SMT Wafer | LCP UL94V-0 |
| Terminal | Phosphor bronze,Tin plated |
Drawing
Rosh
MSDS

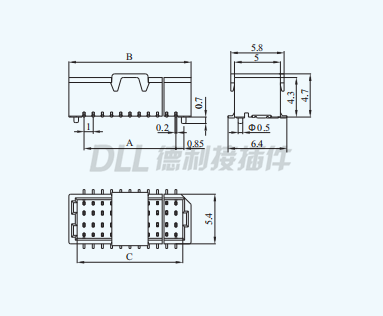

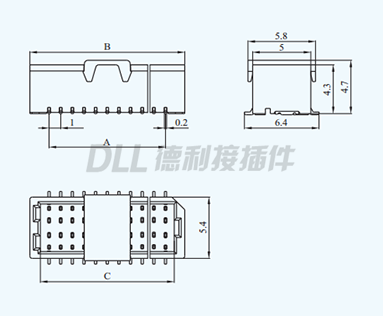

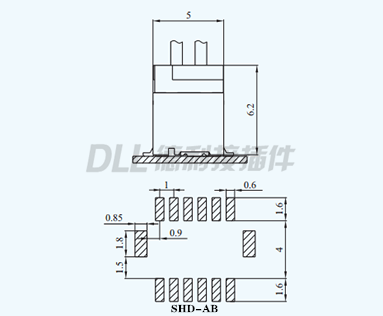

| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2x2 |
SHD-4AB/SHD-4ABS |
1.00 | 4.30 | 2.50 |
| 2x3 | SHD-6AB/SHD-6ABS | 2.00 | 5.30 | 3.50 |
| 2x4 | SHD-8AB/SHD-8ABS | 3.00 | 6.30 | 4.50 |
| 2x5 | SHD-10AB/SHD-10ABS | 4.00 | 7.30 | 5.50 |
| 2x6 | SHD-12AB/SHD-12ABS | 5.00 | 8.30 | 6.50 |
| 2x7 |
SHD-14AB/SHD-14ABS |
6.00 | 9.30 | 7.50 |
| 2x8 | SHD-16AB/SHD-16ABS | 7.00 | 10.30 | 8.50 |
| 2x9 | SHD-18AB/SHD-18ABS | 8.00 | 11.30 | 9.50 |
| 2x10 | SHD-20AB/SHD-20ABS | 9.00 | 12.30 | 10.50 |
| 2x11 | SHD-22AB/SHD-22ABS | 10.00 | 13.30 | 11.50 |
| 2x12 | SHD-24AB/SHD-24ABS | 11.00 | 14.30 | 12.50 |
| 2x13 | SHD-26AB/SHD-26ABS | 12.00 | 15.30 | 13.50 |
| 2x14 | SHD-28AB/SHD-28ABS | 13.00 | 16.30 | 14.50 |
| 2x15 | SHD-30AB/SHD-30ABS | 14.00 | 17.30 | 15.50 |
| ~ | ~ | ~ | ~ | ~ |
|
2x25 |
SHD-50AB/SHD-50ABS |
24.00 |
27.30 |
25.50 |

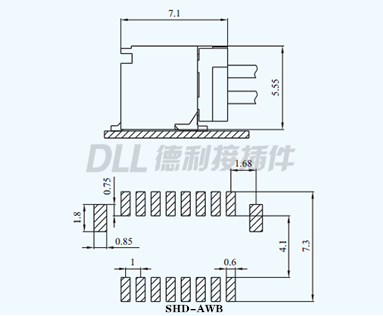

| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2x2 | SHD-4AWB | 1.00 | 5.10 | 2.50 |
| 2x3 | SHD-6AWB | 2.00 | 6.10 | 3.50 |
| 2x4 | SHD-8AWB | 3.00 | 7.10 | 4.50 |
| 2x5 | SHD-10AWB | 4.00 | 8.10 | 5.50 |
| 2x6 | SHD-12AWB | 5.00 | 9.10 | 6.50 |
| 2x7 | SHD-14AWB | 6.00 | 10.10 | 7.50 |
| 2x8 | SHD-16AWB | 7.00 | 11.10 | 8.50 |
| 2x9 | SHD-18AWB | 8.00 | 12.10 | 9.50 |
| 2x10 | SHD-20AWB | 9.00 | 13.10 | 10.50 |
| 2x11 | SHD-22AWB | 10.00 | 14.10 | 11.50 |
| 2x12 | SHD-24AWB | 11.00 | 15.10 | 12.50 |
| 2x13 |
SHD-26AWB |
12.00 | 16.10 | 13.50 |
| 2x14 | SHD-28AWB | 13.00 | 17.10 | 14.50 |
| 2x15 | SHD-30AWB | 14.00 | 18.10 | 15.50 |
| ~ | ~ | ~ | ~ |
~ |
|
2x25 |
SHD-50AWB |
24.00 |
28.10 |
25.50 |

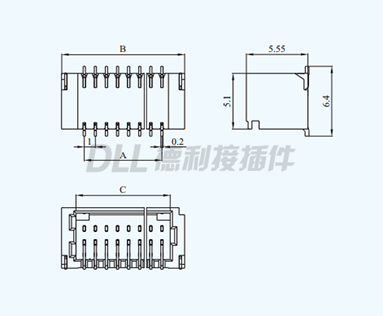

| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2x2 | SHD-4Y | 1.00 | 5.00 | 2.40 |
| 2x3 | SHD-6Y | 2.00 | 6.00 | 3.40 |
| 2x4 | SHD-8Y | 3.00 | 7.00 | 4.40 |
| 2x5 | SHD-10Y | 4.00 | 8.00 | 5.40 |
| 2x6 | SHD-12Y | 5.00 | 9.00 | 6.40 |
| 2x7 | SHD-14Y | 6.00 | 10.00 | 7.40 |
| 2x8 | SHD-16Y | 7.00 | 11.00 | 8.40 |
| 2x9 | SHD-18Y | 8.00 | 12.00 | 9.40 |
| 2x10 | SHD-20Y | 9.00 | 13.00 | 10.40 |
| 2x11 | SHD-22Y | 10.00 | 14.00 | 11.40 |
| 2x12 | SHD-24Y | 11.00 | 15.00 | 12.40 |
| 2x13 |
SHD-26Y |
12.00 | 16.00 | 13.40 |
| 2x14 | SHD-28Y | 13.00 | 17.00 | 14.40 |
| 2x15 | SHD-30Y | 14.00 | 18.00 | 15.40 |
| ~ | ~ | ~ | ~ |
~ |
|
2x25 |
SHD-50Y |
24.00 |
28.00 |
25.40 |
