Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 2.5A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | LCP UL94V-0 |

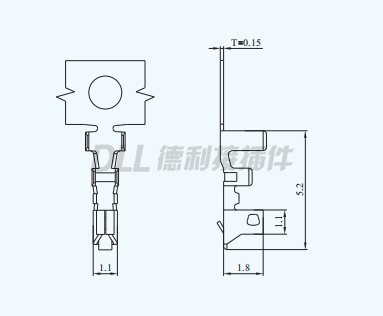

| Terminal | Phosphor bronze,Tin plated |

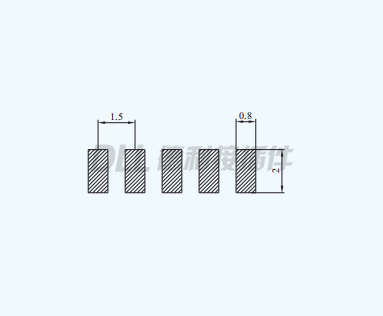

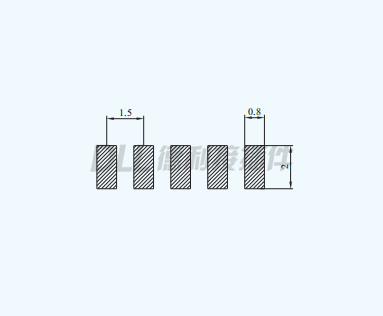

Drawing
Rosh
MSDS
|
Circuits |

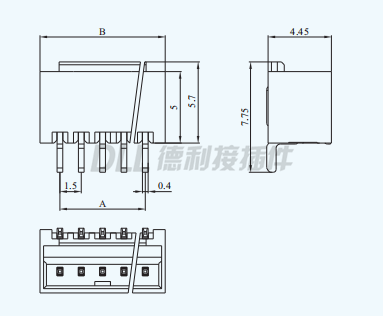

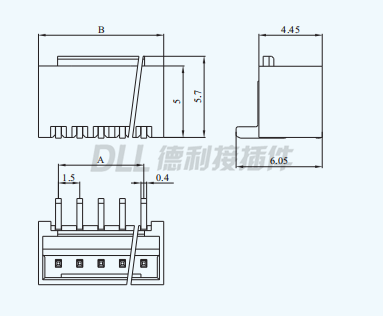

Type | Dimensions(mm) | |
| A | B | ||
| 2 |

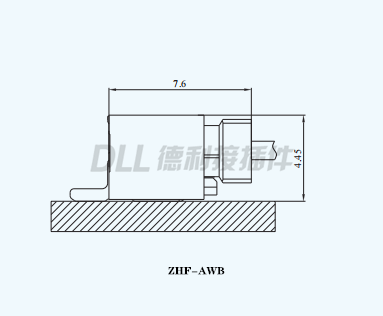

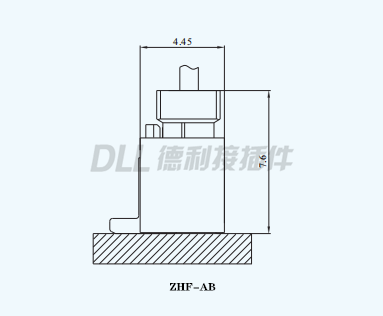

ZHF-2AB/ZHF-2AWB |
1.50 |
4.30 |
| 3 | ZHF-3AB/ZHF-3AWB | 3.00 |
5.80 |
| 4 | ZHF-4AB/ZHF-4AWB | 4.50 |
7.30 |
| 5 | ZHF-5AB/ZHF-5AWB | 6.00 |
8.80 |
| 6 | ZHF-6AB/ZHF-6AWB | 7.50 |
10.30 |
| 7 | ZHF-7AB/ZHF-7AWB | 9.00 |
11.80 |
| 8 | ZHF-8AB/ZHF-8AWB | 10.50 |
13.30 |
| 9 | ZHF-9AB/ZHF-9AWB | 12.00 |
14.80 |
| 10 | ZHF-10AB/ZHF-10AWB | 13.50 |
16.30 |
| 11 | ZHF-11AB/ZHF-11AWB | 15.00 | 17.80 |
| 12 | ZHF-12AB/ZHF-12AWB | 16.50 |
19.30 |
| 13 | ZHF-13AB/ZHF-13AWB | 18.00 |
20.80 |
| 14 | ZHF-14AB/ZHF-14AWB | 19.50 |
22.30 |
| 15 | ZHF-15AB/ZHF-15AWB |
21.00 |
23.80 |
|
Circuits |

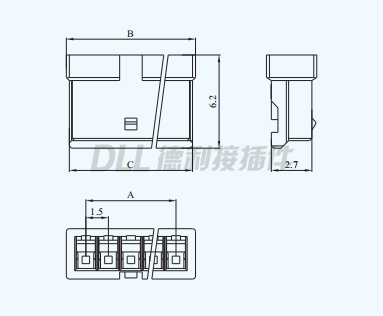

Type | Dimensions(mm) | ||
| A | B | C | ||
| 2 | ZHF-2Y | 1.50 | 4.10 | 3.70 |
| 3 | ZHF-3Y | 3.00 |
5.60 |
5.20 |
| 4 | ZHF-4Y | 4.50 | 7.10 |
6.70 |
| 5 | ZHF-5Y | 6.00 |
8.60 |
8.20 |
| 6 | ZHF-6Y |
7.50 |
10.10 |
9.70 |
| 7 | ZHF-7Y |
9.00 |
11.60 |
11.20 |
| 8 | ZHF-8Y |
10.50 |
13.10 |
12.70 |
| 9 | ZHF-9Y |
12.00 |
14.60 |
14.20 |
| 10 | ZHF-10Y |
13.50 |
16.10 | 15.70 |
| 11 | ZHF-11Y | 15.00 | 17.60 | 17.20 |
| 12 | ZHF-12Y | 16.50 | 19.10 | 18.70 |
| 13 | ZHF-13Y | 18.00 |
20.60 |
20.20 |
| 14 | ZHF-14Y | 19.50 |
22.10 |
21.70 |
| 15 | ZHF-15Y |
21.00 |
23.60 |
23.20 |
