Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 2A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 800V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Wire range | AWG#30?#24 |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

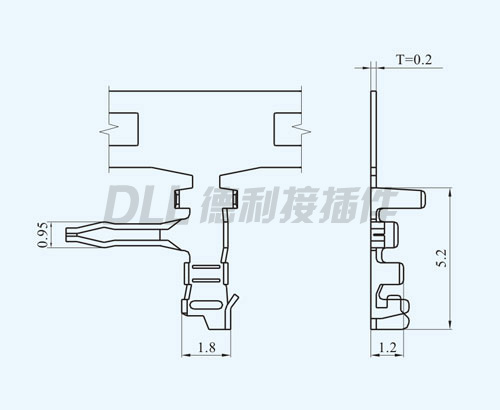

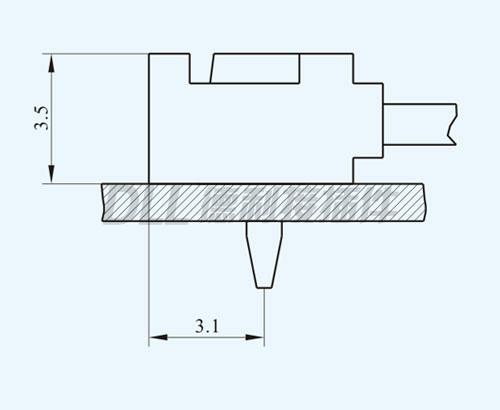

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | JC20-2Y | 2.00 | 4.50 |
| 3 | JC20-3Y | 4.00 | 6.50 |
| 4 | JC20-4Y | 6.00 | 8.50 |
| 5 | JC20-5Y | 8.00 | 10.50 |
| 6 | JC20-6Y | 10.00 | 12.50 |
| 7 | JC20-7Y | 12.00 | 14.50 |
| 8 | JC20-8Y | 14.00 | 16.50 |
| 9 | JC20-9Y | 16.00 | 18.50 |
| 10 | JC20-10Y | 18.00 | 20.50 |
| 11 | JC20-11Y | 20.00 | 22.50 |
| 12 | JC20-12Y | 22.00 | 24.50 |
| 13 | JC20-13Y | 24.00 | 26.50 |
| ~ | ~ | ~ | ~ |
| 16 | JC20-16Y | 30.00 | 32.50 |
