Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Wire range | AWG#28?#22 |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

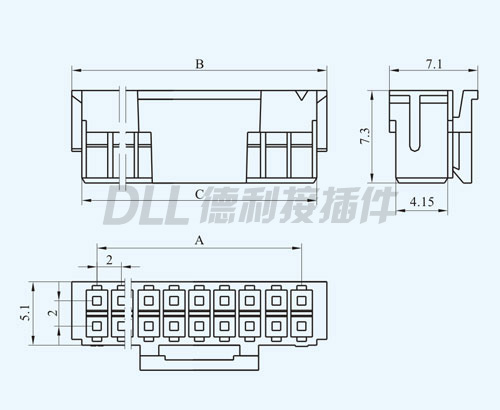

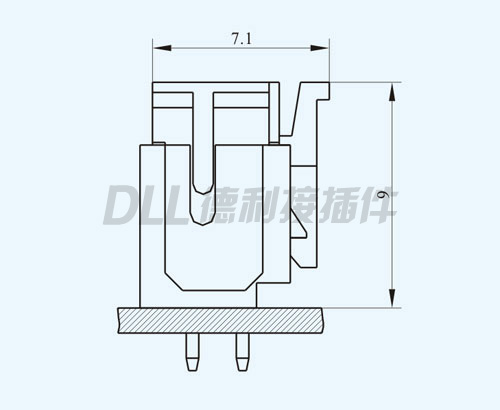

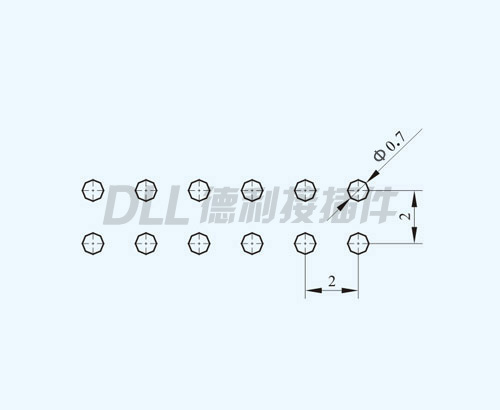

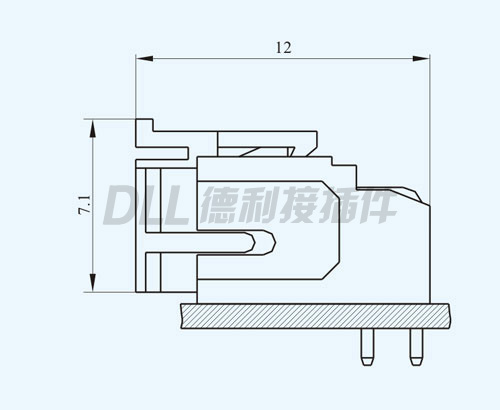

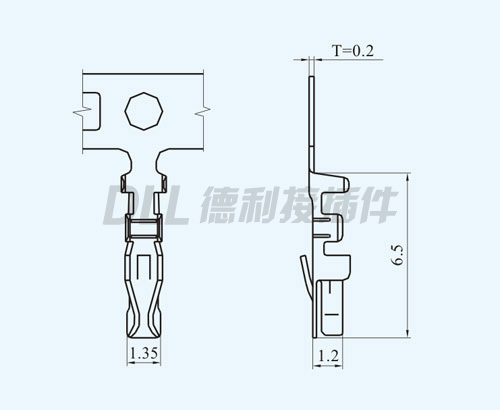

Drawing
Rosh
MSDS

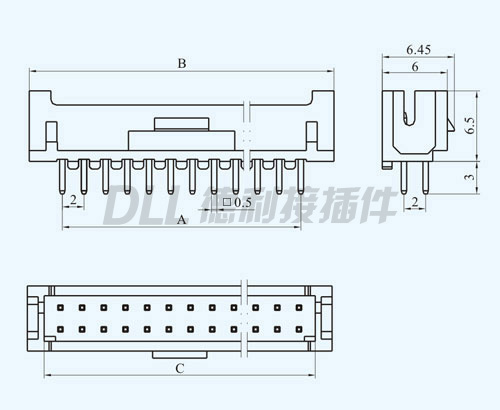

| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2×2 | PHDH-4A/PHDH-4AW/PHDH-4AWD | 2.00 | 8.00 | 5.00 |
| 2×3 | PHDH-6A/PHDH-6AW/PHDH-6AWD | 4.00 | 10.00 | 7.00 |
| 2×4 | PHDH-8A/PHDH-8AW/PHDH-8AWD | 6.00 | 12.00 | 9.00 |
| 2×5 | PHDH-10A/PHDH-10AW/PHDH-10AWD | 8.00 | 14.00 | 11.00 |
| 2×6 | PHDH-12A/PHDH-12AW/PHDH-12AWD | 10.00 | 16.00 | 13.00 |
| 2×7 | PHDH-14A/PHDH-14AW/PHDH-14AWD | 12.00 | 18.00 | 15.00 |
| 2×8 | PHDH-16A/PHDH-16AW/PHDH-16AWD | 14.00 | 20.00 | 17.00 |
| 2×9 | PHDH-18A/PHDH-18AW/PHDH-18AWD | 16.00 | 22.00 | 19.00 |
| 2×10 | PHDH-20A/PHDH-20AW/PHDH-20AWD | 18.00 | 24.00 | 21.00 |
| 2×11 | PHDH-22A/PHDH-22AW/PHDH-22AWD | 20.00 | 26.00 | 23.00 |
| 2×12 | PHDH-24A/PHDH-24AW/PHDH-24AWD | 22.00 | 28.00 | 25.00 |
| 2×13 | PHDH-26A/PHDH-26AW/PHDH-26AWD | 24.00 | 30.00 | 27.00 |
| 2×14 | PHDH-28A/PHDH-28AW/PHDH-28AWD | 26.00 | 32.00 | 29.00 |
| 2×15 | PHDH-30A/PHDH-30AW/PHDH-30AWD | 28.00 | 34.00 | 31.00 |
| 2×16 | PHDH-32A/PHDH-32AW/PHDH-32AWD | 30.00 | 36.00 | 33.00 |
| 2×17 | PHDH-34A/PHDH-34AW/PHDH-34AWD | 32.00 | 38.00 | 35.00 |
| 2×18 | PHDH-36A/PHDH-36AW/PHDH-36AWD | 34.00 | 40.00 | 37.00 |
| 2×19 | PHDH-38A/PHDH-38AW/PHDH-38AWD | 36.00 | 42.00 | 39.00 |
| 2×20 | PHDH-40A/PHDH-40AW/PHDH-40AWD | 38.00 | 44.00 | 41.00 |
| ~ | ~ | ~ | ~ | ~ |
| 2×30 | PHDH-60A/PHDH-60AW/PHDH-60AWD | 58.00 | 64.00 | 61.00 |

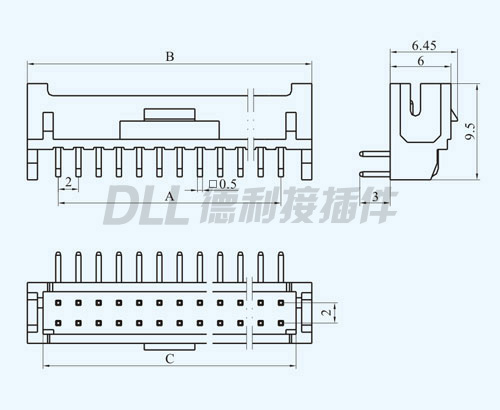

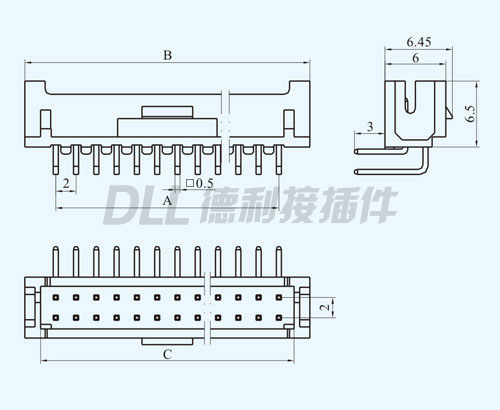

| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2×2 | PHDH-4Y | 2.00 | 6.00 | 4.60 |
| 2×3 | PHDH-6Y | 4.00 | 8.00 | 6.60 |
| 2×4 | PHDH-8Y | 6.00 | 10.00 | 8.60 |
| 2×5 | PHDH-10Y | 8.00 | 12.00 | 10.60 |
| 2×6 | PHDH-12Y | 10.00 | 14.00 | 12.60 |
| 2×7 | PHDH-14Y | 12.00 | 16.00 | 14.60 |
| 2×8 | PHDH-16Y | 14.00 | 18.00 | 16.60 |
| 2×9 | PHDH-18Y | 16.00 | 20.00 | 18.60 |
| 2×10 | PHDH-20Y | 18.00 | 22.00 | 20.60 |
| 2×11 | PHDH-22Y | 20.00 | 24.00 | 22.60 |
| 2×12 | PHDH-24Y | 22.00 | 26.00 | 24.60 |
| 2×13 | PHDH-26Y | 24.00 | 28.00 | 26.60 |
| 2×14 | PHDH-28Y | 26.00 | 30.00 | 28.60 |
| 2×15 | PHDH-30Y | 28.00 | 32.00 | 30.60 |
| 2×16 | PHDH-32Y | 30.00 | 34.00 | 32.60 |
| 2×17 | PHDH-34Y | 32.00 | 36.00 | 34.60 |
| 2×18 | PHDH-36Y | 34.00 | 38.00 | 36.60 |
| 2×19 | PHDH-38Y | 36.00 | 40.00 | 38.60 |
| 2×20 | PHDH-40Y | 38.00 | 42.00 | 40.60 |
| 2×21 | PHDH-42Y | 40.00 | 44.00 | 42.60 |
| 2×22 | PHDH-44Y | 42.00 | 46.00 | 44.60 |
| ~ | ~ | ~ | ~ | ~ |
| 2×30 | PHDH-60Y | 58.00 | 62.00 | 60.60 |
