Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 800V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |
Drawing
Rosh
MSDS

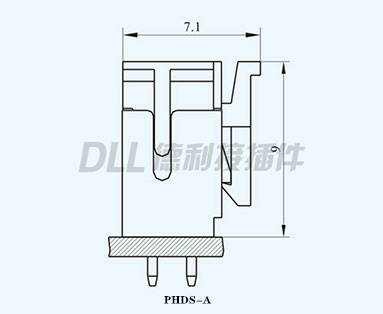

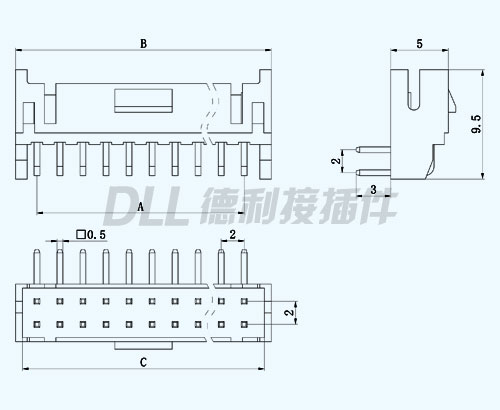

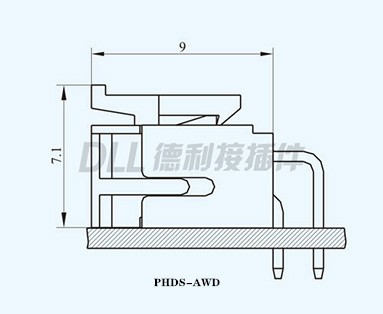

| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2×2 | PHDS-4A/PHDS-4AW/PHDS-4AWD | 2.00 | 6.00 | 5.00 |
| 2×3 | PHDS-6A/PHDS-6AW/PHDS-6AWD | 4.00 | 8.00 | 7.00 |
| 2×4 | PHDS-8A/PHDS-8AW/PHDS-8AWD | 6.00 | 10.00 | 9.00 |
| 2×5 | PHDS-10A/PHDS-10AW/PHDS-10AWD | 8.00 | 12.00 | 11.00 |
| 2×6 | PHDS-12A/PHDS-12AW/PHDS-12AWD | 10.00 | 14.00 | 13.00 |
| 2×7 | PHDS-14A/PHDS-14AW/PHDS-14AWD | 12.00 | 16.00 | 15.00 |
| 2×8 | PHDS-16A/PHDS-16AW/PHDS-16AWD | 14.00 | 18.00 | 17.00 |
| 2×9 | PHDS-18A/PHDS-18AW/PHDS-18AWD | 16.00 | 20.00 | 19.00 |
| 2×10 | PHDS-20A/PHDS-20AW/PHDS-20AWD | 18.00 | 22.00 | 21.00 |
| 2×11 | PHDS-22A/PHDS-22AW/PHDS-22AWD | 20.00 | 24.00 | 23.00 |
| 2×12 | PHDS-24A/PHDS-24AW/PHDS-24AWD | 22.00 | 26.00 | 25.00 |
| 2×13 | PHDS-26A/PHDS-26AW/PHDS-26AWD | 24.00 | 28.00 | 27.00 |
| 2×14 | PHDS-28A/PHDS-28AW/PHDS-28AWD | 26.00 | 30.00 | 29.00 |
| 2×15 | PHDS-30A/PHDS-30AW/PHDS-30AWD | 28.00 | 32.00 | 31.00 |
| 2×16 | PHDS-32A/PHDS-32AW/PHDS-32AWD | 30.00 | 34.00 | 33.00 |
| 2×17 | PHDS-34A/PHDS-34AW/PHDS-34AWD | 32.00 | 36.00 | 35.00 |
| 2×18 | PHDS-36A/PHDS-36AW/PHDS-36AWD | 34.00 | 38.00 | 37.00 |
| 2×19 | PHDS-38A/PHDS-38AW/PHDS-38AWD | 36.00 | 40.00 | 39.00 |
| 2×20 | PHDS-40A/PHDS-40AW/PHDS-40AWD | 38.00 | 42.00 | 41.00 |
| ~ | ~ | ~ | ~ | ~ |
| 2×30 | PHDS-60A/PHDS-60AW/PHDS-60AWD | 58.00 | 62.00 | 61.00 |
| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2×2 | PHDS-4Y | 2.00 | 6.00 | 4.60 |
| 2×3 | PHDS-6Y | 4.00 | 8.00 | 6.60 |
| 2×4 | PHDS-8Y | 6.00 | 10.00 | 8.60 |
| 2×5 | PHDS-10Y | 8.00 | 12.00 | 10.60 |
| 2×6 | PHDS-12Y | 10.00 | 14.00 | 12.60 |
| 2×7 | PHDS-14Y | 12.00 | 16.00 | 14.60 |
| 2×8 | PHDS-16Y | 14.00 | 18.00 | 16.60 |
| 2×9 | PHDS-18Y | 16.00 | 20.00 | 18.60 |
| 2×10 | PHDS-20Y | 18.00 | 22.00 | 20.60 |
| 2×11 | PHDS-22Y | 20.00 | 24.00 | 22.60 |
| 2×12 | PHDS-24Y | 22.00 | 26.00 | 24.60 |
| 2×13 | PHDS-26Y | 24.00 | 28.00 | 26.60 |
| 2×14 | PHDS-28Y | 26.00 | 30.00 | 28.60 |
| 2×15 | PHDS-30Y | 28.00 | 32.00 | 30.60 |
| 2×16 | PHDS-32Y | 30.00 | 34.00 | 32.60 |
| 2×17 | PHDS-34Y | 32.00 | 36.00 | 34.60 |
| 2×18 | PHDS-36Y | 34.00 | 38.00 | 36.60 |
| 2×19 | PHDS-38Y | 36.00 | 40.00 | 38.60 |
| 2×20 | PHDS-40Y | 38.00 | 42.00 | 40.60 |
| ~ | ~ | ~ | ~ | ~ |
| 2×30 | PHDS-60Y | 58.00 | 62.00 | 60.60 |
