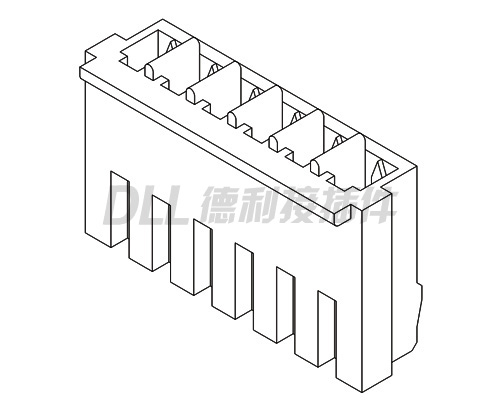

Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Wire range | AWG#28?#22 |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |
Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | TJC3H-2Y | 2.50 | 6.70 |
| 3 | TJC3H-3Y | 5.00 | 9.20 |
| 4 | TJC3H-4Y | 7.50 | 11.70 |
| 5 | TJC3H-5Y | 10.00 | 14.20 |
| 6 | TJC3H-6Y | 12.50 | 16.70 |
| 7 | TJC3H-7Y | 15.00 | 19.20 |
| 8 | TJC3H-8Y | 17.50 | 21.70 |
| 9 | TJC3H-9Y | 20.00 | 24.20 |
| 10 | TJC3H-10Y | 22.50 | 26.70 |
| 11 | TJC3H-11Y | 25.00 | 29.20 |
| 12 | TJC3H-12Y | 27.50 | 31.70 |
| 13 | TJC3H-13Y | 30.00 | 34.20 |
| 14 | TJC3H-14Y | 32.50 | 36.70 |
| 15 | TJC3H-15Y | 35.00 | 39.20 |
| 16 | TJC3H-16Y | 37.50 | 41.70 |
