Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 300V AC，DC |
| Rated current | 13A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

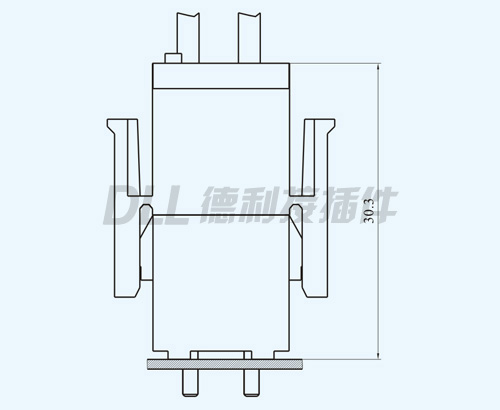

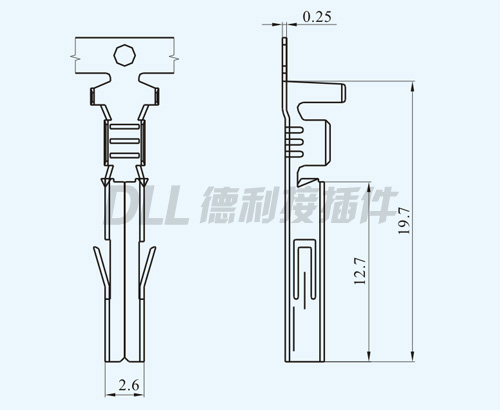

Drawing
Rosh
MSDS
Note: The above drawings are for reference only, please consult our sales staff for details
|

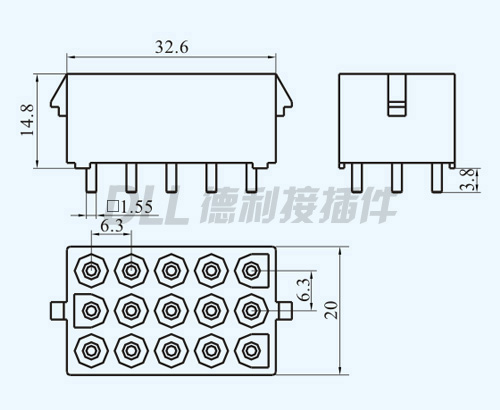

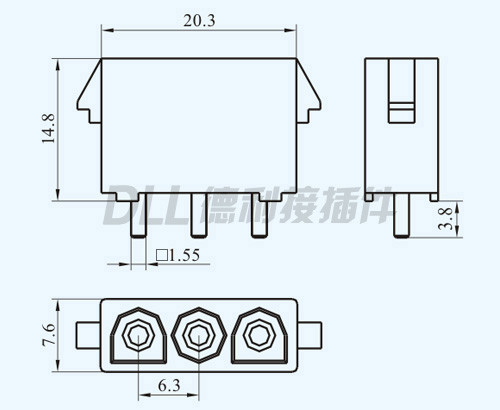

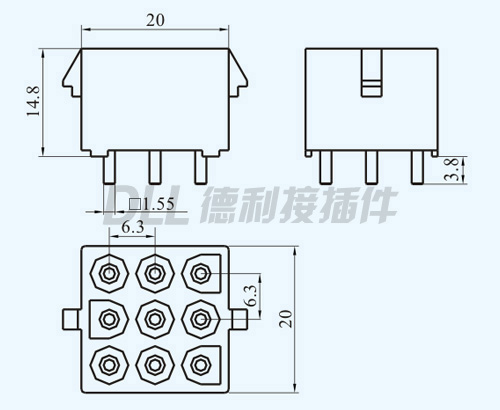

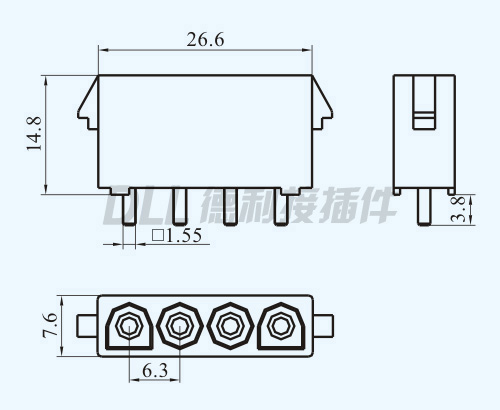

Wafer |

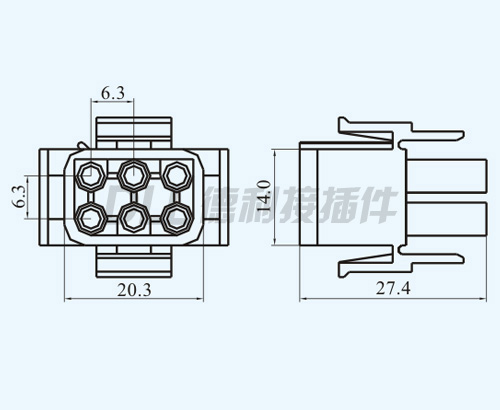

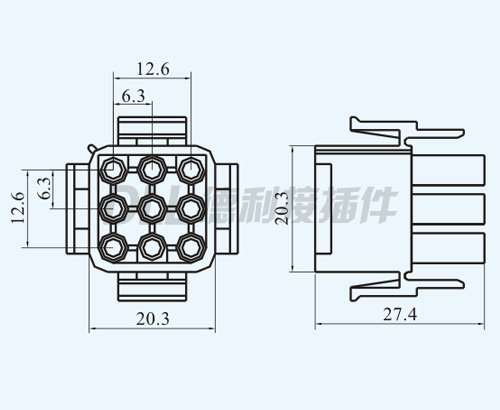

Plug Housing |

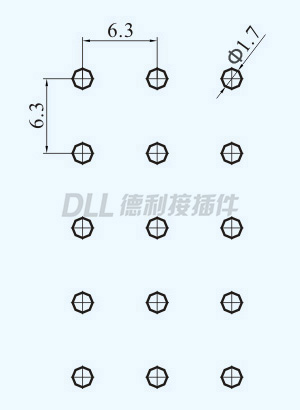

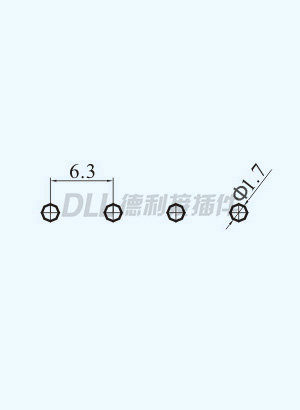

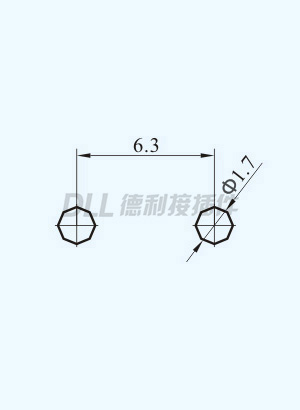

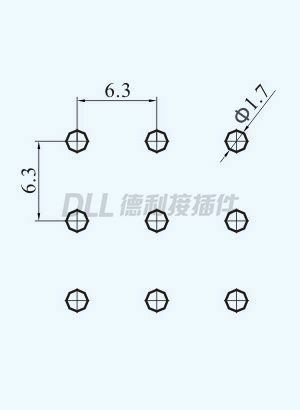

Mounting Measurement |
|
DL63001-2A(42002-2A)
|
DL63001-2Y(42021-2Y)
|
|
|
DL63001-3A(42002-3A)
|
DL63001-3Y(42021-3Y)
|
|
|
DL63001-4A(42002-4A)
|
DL63001-4AF(42002-4AF)
|
|
|
DL63001-4G(42002-4G)
|
DL63001-4Y(42021-4Y)
|
|
|
DL63001-6A(42002-6A)
|
DL63001-6Y(42021-6Y)
|
|
|
DL63001-9A(42002-9A)
|
DL63001-9Y(42021-9Y)
|
|
|
DL63001-12A(42002-12A)
|
DL63001-12Y(42021-12Y)
|
|
|
DL63001-15A(42002-15A)
|
DL63001-15Y(42021-15Y)
|
|
