Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 5A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | PBT/UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

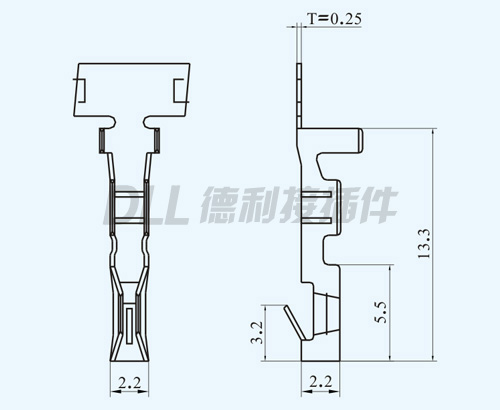

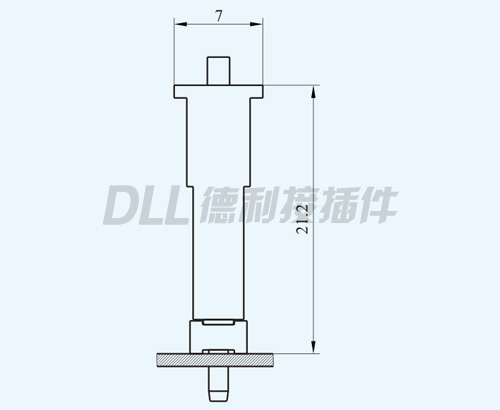

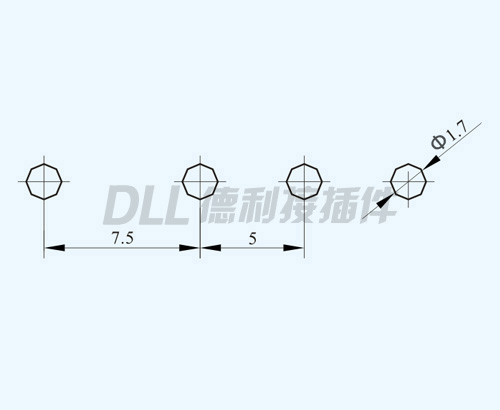

Drawing
Rosh
MSDS

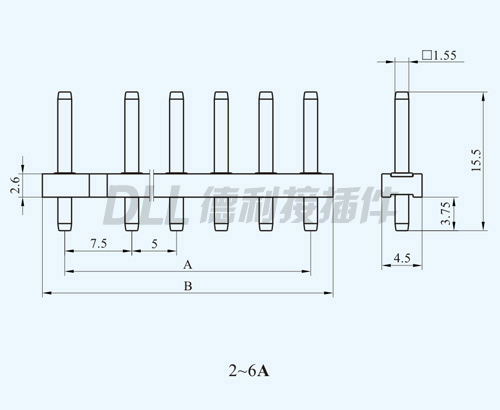

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | TJC2-2A | 7.50 | 12.5 |
| 3 | TJC2-3A | 12.5 | 17.5 |
| 4 | TJC2-4A | 17.5 | 22.5 |
| 5 | TJC2-5A | 22.5 | 27.5 |
| 6 | TJC2-6A | 27.5 | 32.5 |
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | TJC2-2Y | - | 12.5 |
| 3 | TJC2-3Y | 5.0 | 17.5 |
| 4 | TJC2-4Y | 10.0 | 22.5 |
| 5 | TJC2-5Y | 15.0 | 27.5 |
| 6 | TJC2-6Y | 20.0 | 32.5 |
