Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 5A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Wire range | AWG#26?#20 |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | PBT/UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

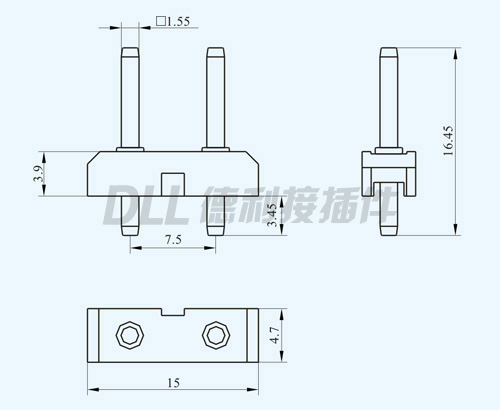

Drawing
Rosh
MSDS

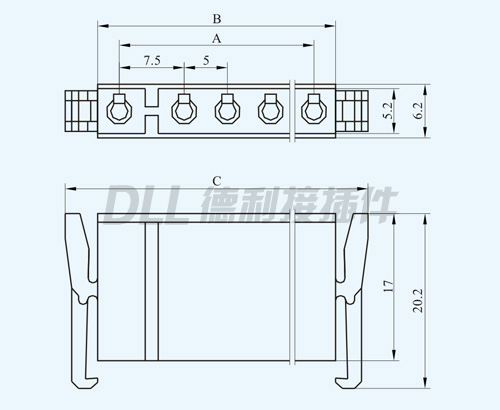

| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2 | TJC2A-2Y | 7.5 | 12.5 | 20.0 |
| 3 | TJC2A-3Y | 12.5 | 17.5 | 25.0 |
| 4 | TJC2A-4Y | 17.5 | 22.5 | 30.0 |
| 5 | TJC2A-5Y | 22.5 | 27.5 | 35.0 |
| 6 | TJC2A-6Y | 27.5 | 32.5 | 40.0 |
