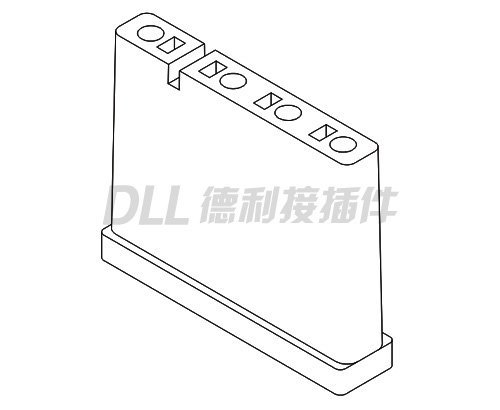

Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 5A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Wire range | AWG#26?#20 |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |
Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 3 | TJC2C-3Y | 5.0 | 17.0 |
| 4 | TJC2C-4Y | 10.0 | 22.0 |
| 6 | TJC2C-6Y | 15.0 | 32.0 |
