Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 5A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |
Drawing
Rosh
MSDS

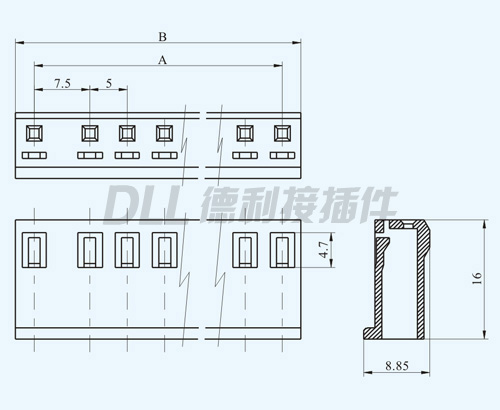

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | 5287-2A | 7.5 | 12.5 |
| 3 | 5287-3A | 12.5 | 17.5 |
| 4 | 5287-4A | 17.5 | 22.5 |
| 5 | 5287-5A | 22.5 | 27.5 |
| 6 | 5287-6A | 27.5 | 32.5 |

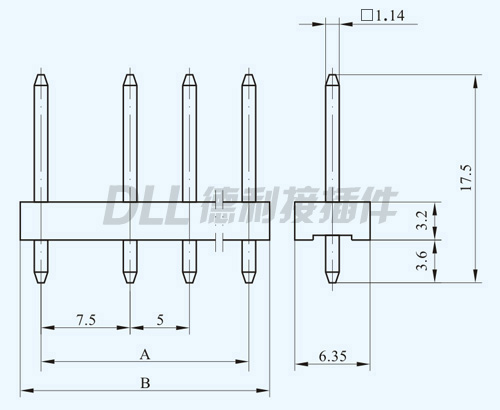

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | 5199-2Y | 7.5 | 10.7 |
| 3 | 5199-3Y | 12.5 | 15.7 |
| 4 | 5199-4Y | 17.5 | 20.7 |
| 5 | 5199-5Y | 22.5 | 25.7 |
| 6 | 5199-6Y | 27.5 | 30.7 |
