Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 7A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Wire range | AWG#24?#18 |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | PBT/UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

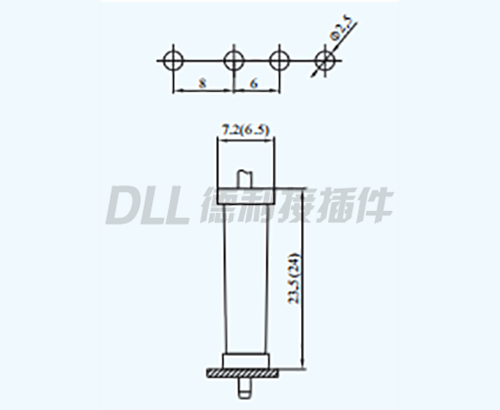

Drawing
Rosh
MSDS

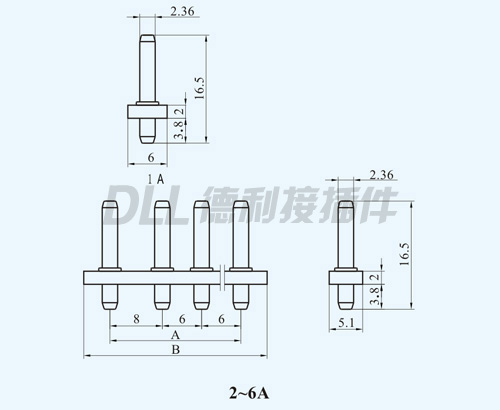

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | TJC4-2A | 8.0 | 16.0 |
| 3 | TJC4-3A | 14.0 | 22.0 |
| 4 | TJC4-4A | 20.0 | 28.0 |
| 5 | TJC4-5A | 26.0 | 34.0 |
| 6 | TJC4-6A | 32.0 | 40.0 |

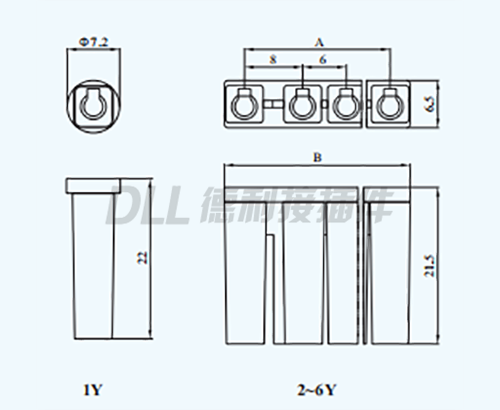

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | TJC4-2Y | 8.0 | 13.5 |
| 3 | TJC4-3Y | 14.0 | 19.5 |
| 4 | TJC4-4Y | 20.0 | 25.5 |
| 5 | TJC4-5Y | 26.0 | 31.5 |
| 6 | TJC4-6Y | 32.0 | 37.5 |
