Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 7A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Wire range | AWG#24?#18 |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | PBT/UL94-V0(2) |

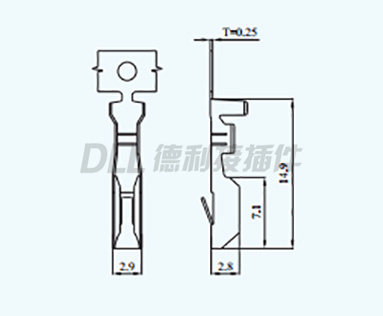

| Terminal | Phosphor bronze, Tin plated |

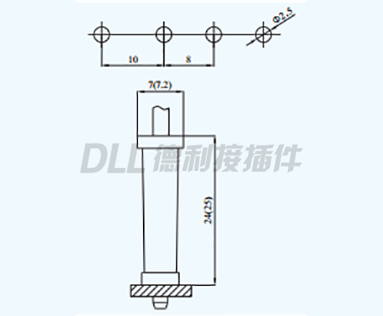

Drawing
Rosh
MSDS

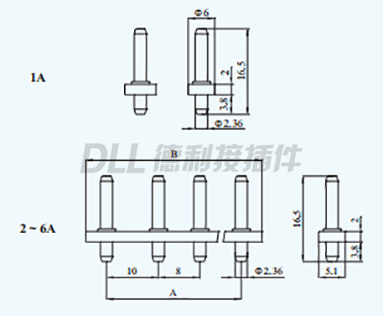

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | TJC1-2A | 10.0 | 18.0 |
| 3 | TJC1-3A | 18.0 | 26.0 |
| 4 | TJC1-4A | 26.0 | 34.5 |
| 5 | TJC1-5A | 34.0 | 42.5 |
| 6 | TJC1-6A | 42.0 | 50.5 |

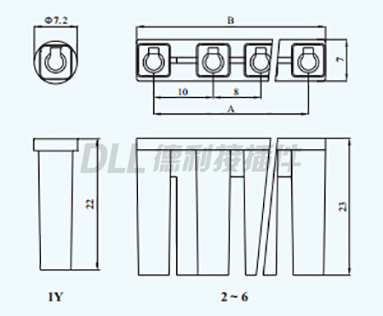

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | TJC1-2Y | 10.0 | 16.0 |
| 3 | TJC1-3Y | 18.0 | 24.0 |
| 4 | TJC1-4Y | 26.0 | 31.8 |
| 5 | TJC1-5Y | 34.0 | 39.8 |
| 6 | TJC1-6Y | 42.0 | 47.8 |
