Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 100V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 15m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | PBTUL94-V0(2) |
| Wafer | PBTUL94-V0(2) |
| Stopper | PBTUL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

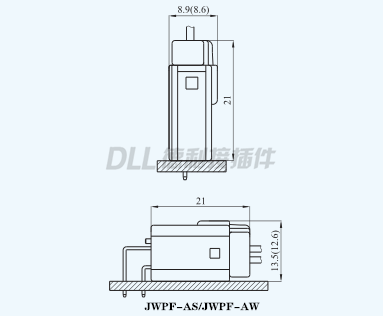

Drawing
Rosh
MSDS
|
Plug Housing |
Receptacle Housing |
|
|
DL20023-2Y(JWPF-2Y)  |
DL20023-2AS(JWPF-2AS)  |
DL20023-2AW(JWPF-2AW)  |
|
DL20023-3Y(JWPF-3Y)  |
DL20023-3AS(JWPF-3AS)  |
DL20023-3AW(JWPF-3AW)  |
|
DL20023-4Y(JWPF-4Y)  |
DL20023-4AS(JWPF-4AS)  |
DL20023-4AW(JWPF-4AW)  |
|
DL20023-6Y(JWPF-6Y)  |
DL20023-6AS(JWPF-6AS)  |
DL20023-6AW(JWPF-6AW)  |
|
DL20023-8Y(JWPF-8Y)  |
DL20023-8AS(JWPF-8AS)  |
DL20023-8AW(JWPF-8AW)  |
|
DL20023-10Y(JWPF-10Y)  |
DL20023-10AS(JWPF-10AS)  |
DL20023-10AW(JWPF-10AW)  |
|
DL20023-12Y(JWPF-12Y)  |
DL20023-12AS(JWPF-12AS)  |
DL20023-12AW  |
|
DL20023-14Y(JWPF-14Y)  |
DL20023-14AS(JWPF-14AS)  |
DL20023-14AW(JWPF-14AW)  |
