Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 12V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 16m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | PBTUL94-V0(2) |
| Wafer | PBTUL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |
Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||

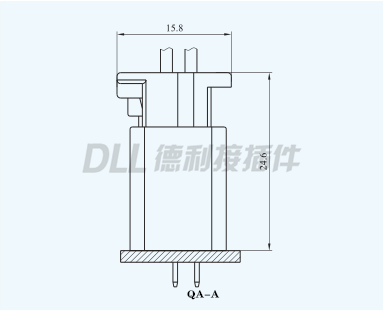

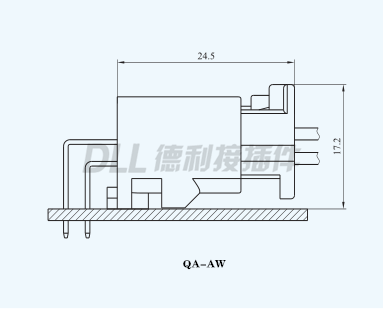

| 2x2 | QA-4A/QA-4AW | 2.20 | 9.80 | |
| 2x3 | QA-6A/QA-6AW | 4.40 | 12.00 | |
|
2x4 |
QA-8A/QA-8AW | 6.60 | 14.20 | |
| 2x5 | QA-10A/QA-10AW | 8.80 | 16.40 | |
| 2x6 | QA-12A/QA-12AW | 11.00 | 18.60 | |
| 2x7 | QA-14A/QA-14AW | 13.20 | 20.80 | |
| 2x8 | QA-16A/QA-16AW | 15.40 | 23.00 | |
| 2x9 | QA-18A/QA-18AW | 17.60 | 25.20 | |
| 2x10 | QA-20A/QA-20AW | 19.80 | 27.40 | |
| 2x11 | QA-22A/QA-22AW | 22.00 | 29.60 | |
| 2x12 | QA-24A/QA-24AW | 24.20 | 31.80 | |
| 2x13 | QA-26A/QA-26AW | 26.40 | 34.00 | |
| 2x14 | QA-28A/QA-28AW | 28.60 | 36.20 | |
| 2x15 | QA-30A/QA-30AW | 30.80 | 38.40 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | QA-40A/QA-40AW | 41.80 | 49.40 | |
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2x2 | QA-4Y | 2.20 | 6.60 | |
| 2x3 | QA-6Y | 4.40 | 8.80 | |
| 2x4 | QA-8Y | 6.60 | 11.00 | |
| 2x5 | QA-10Y | 8.80 | 13.20 | |
| 2x6 | QA-12Y | 11.00 | 15.40 | |
| 2x7 | QA-14Y | 13.20 | 17.60 | |
| 2x8 | QA-16Y | 15.40 | 19.80 | |
| 2x9 | QA-18Y | 17.60 | 22.00 | |
| 2x10 | QA-20Y | 19.80 | 24.20 | |
| 2x11 | QA-22Y | 22.00 | 26.40 | |
| 2x12 | QA-24Y | 24.20 | 28.60 | |
| 2x13 | QA-26Y | 26.40 | 30.80 | |
| 2x14 | QA-28Y | 28.60 | 33.00 | |
| 2x15 | QA-30Y | 30.80 | 35.20 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | QA-40Y | 41.80 | 46.20 | |
