Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Lock | (Nylon)UL94-V0(2) |

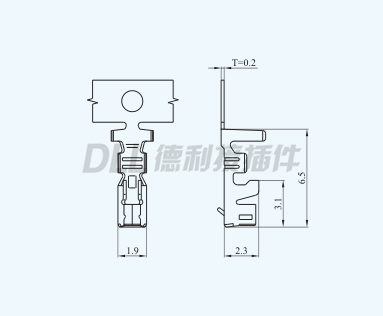

| Terminal | Phosphor bronze,Tin plated |

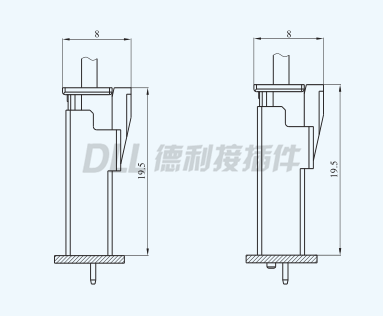

Drawing
Rosh
MSDS

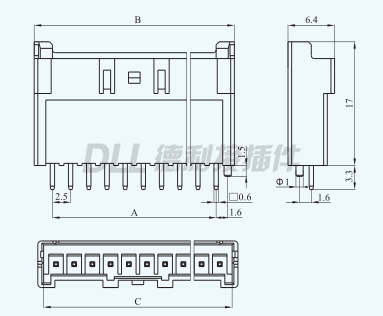

| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2 | XAH-2A/XAH-2AS | 2.50 | 7.50 | 5.90 |
| 3 | XAH-3A/XAH-3AS | 5.00 | 10.00 | 8.40 |
| 4 | XAH-4A/XAH-4AS | 7.50 | 12.50 | 10.90 |
| 5 | XAH-5A/XAH-5AS | 10.00 | 15.00 | 13.40 |
| 6 | XAH-6A/XAH-6AS | 12.50 | 17.50 | 15.90 |
| 7 | XAH-7A/XAH-7AS | 15.00 | 20.00 | 18.40 |
| 8 | XAH-8A/XAH-8AS | 17.50 | 22.50 | 20.90 |
| 9 | XAH-9A/XAH-9AS | 20.00 | 25.00 | 23.40 |
| 10 | XAH-10A/XAH-10AS | 22.50 | 27.50 | 25.90 |
| 11 | XAH-11A/XAH-11AS | 25.00 | 30.00 | 28.40 |
| 12 | XAH-12A/XAH-12AS | 27.50 | 32.50 | 30.90 |
| 13 | XAH-13A/XAH-13AS | 30.00 | 35.00 | 33.40 |
| ~ | ~ | ~ | ~ | ~ |
| 20 | XAH-20A/XAH-20AS | 47.50 | 52.50 | 50.90 |

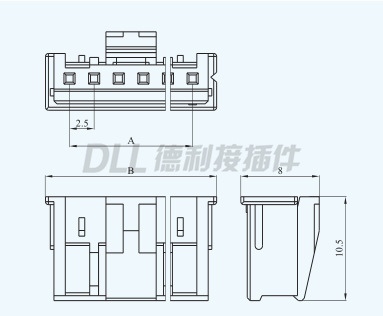

| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | XAH-2Y | 2.50 | 7.30 | |
| 3 | XAH-3Y | 5.00 | 9.80 | |
| 4 | XAH-4Y | 7.50 | 12.30 | |
| 5 | XAH-5Y | 10.00 | 14.80 | |
| 6 | XAH-6Y | 12.50 | 17.30 | |
| 7 | XAH-7Y | 15.00 | 19.80 | |
| 8 | XAH-8Y | 17.50 | 22.30 | |
| 9 | XAH-9Y | 20.00 | 24.80 | |
| 10 | XAH-10Y | 22.50 | 27.30 | |
| 11 | XAH-11Y | 25.00 | 29.80 | |
| 12 | XAH-12Y | 27.50 | 32.30 | |
| 13 | XAH-13Y | 30.00 | 34.80 | |
| ~ | ~ | ~ | ~ | |
| 20 | XAH-20Y | 47.50 | 52.30 | |

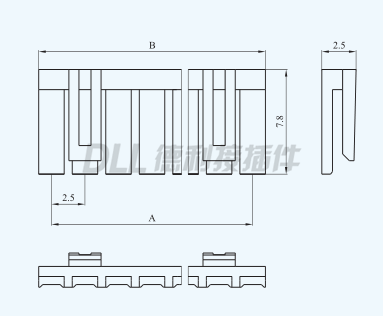

| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | XAH-2S | 2.50 | 4.40 | |
| 3 | XAH-3S | 5.00 | 6.90 | |
| 4 | XAH-4S | 7.50 | 9.40 | |
| 5 | XAH-5S | 10.00 | 11.90 | |
| 6 | XAH-6S | 12.50 | 14.40 | |
| 7 | XAH-7S | 15.00 | 16.90 | |
| 8 | XAH-8S | 17.50 | 19.40 | |
| 9 | XAH-9S | 20.00 | 21.90 | |
| 10 | XAH-10S | 22.50 | 24.40 | |
| 11 | XAH-11S | 25.00 | 26.90 | |
| 12 | XAH-12S | 27.50 | 29.40 | |
| 13 | XAH-13S | 30.00 | 31.90 | |
| ~ | ~ | ~ | ~ | |
| 20 | XAH-20S | 47.50 | 49.40 | |
