Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 30m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 650V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

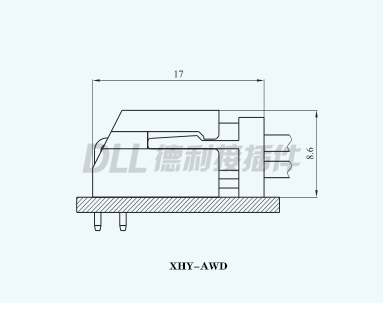

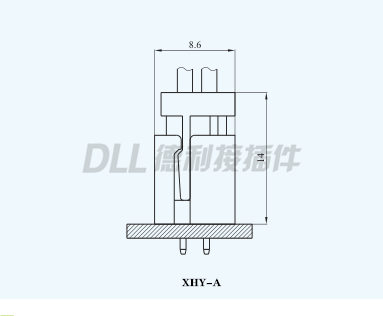

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2x2 | XHY-4A/XHY-4AWD | 2.50 | 7.50 | |
| 2x3 | XHY-6A/XHY-6AWD | 5.00 | 10.00 | |
| 2x4 | XHY-8A/XHY-8AWD | 7.50 | 12.50 | |
| 2x5 | XHY-10A/XHY-10AWD | 10.00 | 15.00 | |
| 2x6 | XHY-12A/XHY-12AWD | 12.50 | 17.50 | |
| 2x7 | XHY-14A/XHY-14AWD | 15.00 | 20.00 | |
| 2x8 | XHY-16A/XHY-16AWD | 17.50 | 22.50 | |
| 2x9 | XHY-18A/XHY-18AWD | 20.00 | 25.00 | |
| 2x10 | XHY-20A/XHY-20AWD | 22.50 | 27.50 | |
| 2x11 | XHY-22A/XHY-22AWD | 25.00 | 30.00 | |
| 2x12 | XHY-24A/XHY-24AWD | 27.50 | 32.50 | |
| 2x13 | XHY-26A/XHY-26AWD | 30.00 | 35.00 | |
| 2x14 | XHY-24A/XHY-24AWD | 32.50 | 37.50 | |
|
2x15 |
XHY-30A/XHY-30AWD | 35.00 | 40.00 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | XHY-40A/XHY-40AWD | 47.50 | 52.50 | |
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2x2 | XHY-4Y | 2.50 | 7.50 | |
| 2x3 | XHY-6Y | 5.00 | 10.00 | |
| 2x4 | XHY-8Y | 7.50 | 12.50 | |
| 2x5 | XHY-10Y | 10.00 | 15.00 | |
| 2x6 | XHY-12Y | 12.50 | 17.50 | |
| 2x7 | XHY-14Y | 15.00 | 20.00 | |
| 2x8 | XHY-16Y | 17.50 | 22.50 | |
| 2x9 | XHY-18Y | 20.00 | 25.00 | |
| 2x10 | XHY-20Y | 22.50 | 27.50 | |
| 2x11 | XHY-22Y | 25.00 | 30.00 | |
| 2x12 | XHY-24Y | 27.50 | 32.50 | |
| 2x13 | XHY-26Y | 30.00 | 35.00 | |
| 2x14 | XHY-28Y | 32.50 | 37.50 | |
| 2x15 | XHY-30Y | 35.00 | 40.00 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | XHY-40Y | 47.50 | 52.50 | |
