Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |

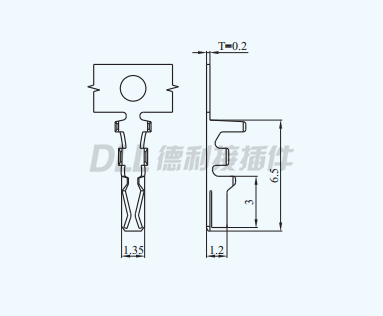

| Terminal | Phosphor bronze,Tin plated |

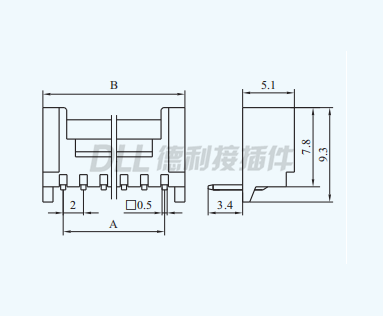

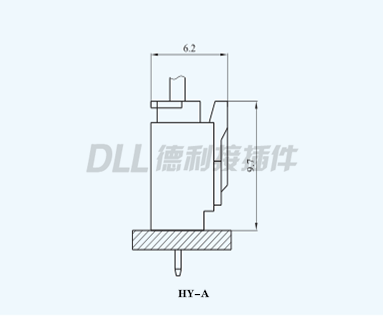

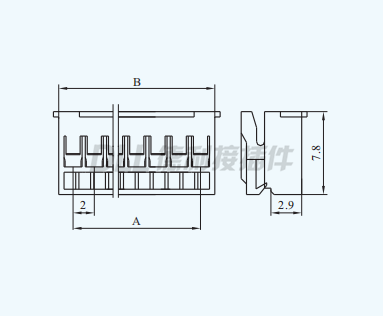

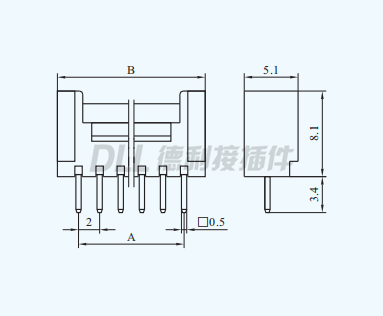

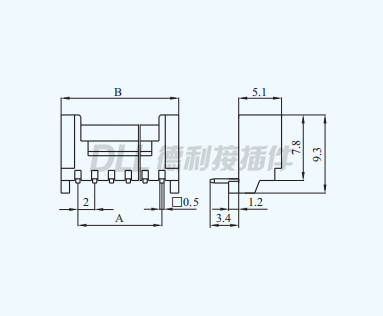

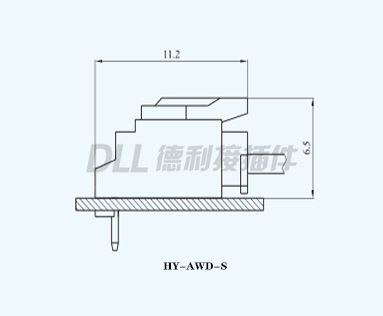

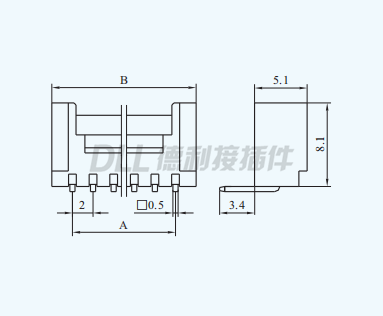

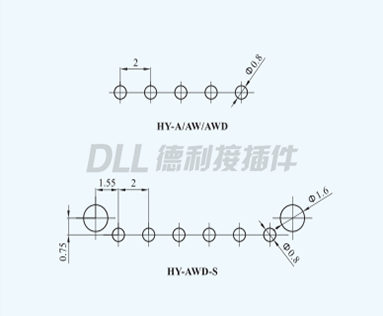

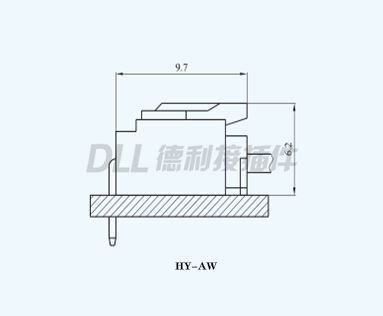

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | HY-2AW/HY-2AWD/HY-2A-S | 2.00 | 6.00 | |
| 3 | HY-3AW/HY-3AWD/HY-3A-S | 4.00 | 8.00 | |
| 4 | HY-4AW/HY-4AWD/HY-4A-S | 6.00 | 10.00 | |
| 5 | HY-5AW/HY-5AWD/HY-5A-S | 8.00 | 12.00 | |
| 6 | HY-6AW/HY-6AWD/HY-6A-S | 10.00 | 14.00 | |
| 7 | HY-7AW/HY-7AWD/HY-7A-S | 12.00 | 16.00 | |
| 8 | HY-8AW/HY-8AWD/HY-8A-S | 14.00 | 18.00 | |
| 9 | HY-9AW/HY-9AWD/HY-9A-S | 16.00 | 20.00 | |
| 10 | HY-10AW/HY-10AWD/HY-10A-S | 18.00 | 22.00 | |
| 11 | HY-11AW/HY-11AWD/HY-11A-S | 20.00 | 24.00 | |
| 12 | HY-12AW/HY-12AWD/HY-12A-S | 22.00 | 26.00 | |
| 13 | HY-13AW/HY-13AWD/HY-13A-S | 24.00 | 28.00 | |
| 14 | HY-14AW/HY-14AWD/HY-14A-S | 26.00 | 30.00 | |
| 15 | HY-15AW/HY-15AWD/HY-15A-S | 28.00 | 32.00 | |
| 16 | HY-16AW/HY-16AWD/HY-16A-S | 30.00 | 34.00 | |
| 17 | HY-17AW/HY-17AWD/HY-17A-S | 32.00 | 36.00 | |
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | HY-2Y | 2.00 | 4.60 | |
| 3 | HY-3Y | 4.00 | 6.60 | |
| 4 | HY-4Y | 6.00 | 8.60 | |
| 5 | HY-5Y | 8.00 | 10.60 | |
| 6 | HY-6Y | 10.00 | 12.60 | |
| 7 | HY-7Y | 12.00 | 14.60 | |
| 8 | HY-8Y | 14.00 | 16.60 | |
| 9 | HY-9Y | 16.00 | 18.60 | |
| 10 | HY-10Y | 18.00 | 20.60 | |
| 11 | HY-11Y | 20.00 | 22.60 | |
| 12 | HY-12Y | 22.00 | 24.60 | |
| 13 | HY-13Y | 24.00 | 26.60 | |
| 14 | HY-14Y | 26.00 | 28.60 | |
| 15 | HY-15Y | 28.00 | 30.60 | |
| 16 | HY-16Y | 30.00 | 32.60 | |
| 17 | HY-17Y | 32.00 | 34.60 | |
