Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

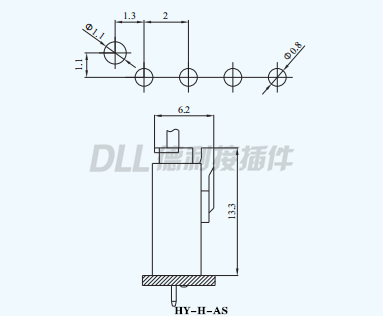

Drawing
Rosh
MSDS
注：以上圖紙僅供參考,詳情請(qǐng)咨詢我司銷售人員
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | HY-H-2AS | 2.00 | 6.00 | |
| 3 | HY-H-3AS | 4.00 | 8.00 | |
| 4 | HY-H-4AS | 6.00 | 10.00 | |
| 5 | HY-H-5AS | 8.00 | 12.00 | |
| 6 | HY-H-6AS | 10.00 | 14.00 | |
| 7 | HY-H-7AS | 12.00 | 16.00 | |
| 8 | HY-H-8AS | 14.00 | 18.00 | |
| 9 | HY-H-9AS | 16.00 | 20.00 | |
| 10 | HY-H-10AS | 18.00 | 22.00 | |
| 11 | HY-H-11AS | 20.00 | 24.00 | |
| 12 | HY-H-12AS | 22.00 | 26.00 | |
| 13 | HY-H-13AS | 24.00 | 28.00 | |
| ~ | ~ | ~ | ~ | |
| 20 | HY-H-20AS | 38.00 | 42.00 | |
| Circuits | Type | Dimensions(mm) | |||
| A | B | C | |||
| 2 |
HY-H-2Y |
2.00 | 4.60 | 5.60 | |
| 3 |
HY-H-3Y |
4.00 | 6.60 | 7.60 | |
| 4 |
HY-H-4Y |
6.00 | 8.60 | 9.60 | |
| 5 |
HY-H-5Y |
8.00 | 10.60 | 11.60 | |
| 6 |
HY-H-6Y |
10.00 | 12.60 | 13.60 | |
| 7 |
HY-H-7Y |
12.00 | 14.60 | 15.60 | |
| 8 |
HY-H-8Y |
14.00 | 16.60 | 17.60 | |
| 9 |
HY-H-9Y |
16.00 | 18.60 | 19.60 | |
| 10 |
HY-H-10Y |
18.00 | 20.60 | 21.60 | |
| 11 |
HY-H-11Y |
20.00 | 22.60 | 23.60 | |
| 12 |
HY-H-12Y |
22.00 | 24.60 | 25.60 | |
| 13 |
HY-H-13Y |
24.00 | 26.60 | 27.60 | |
| ~ |
~ |
~ | ~ | ~ | |
| 20 |
HY-H-20Y |
38.00 | 40.60 | 41.60 | |
