Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 800V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

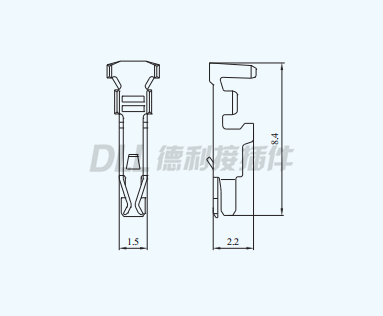

Drawing
Rosh
MSDS
注：以上圖紙僅供參考,詳情請咨詢我司銷售人員
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | PA-H-2AS | 2.00 | 6.00 | |
| 3 | PA-H-3AS | 4.00 | 8.00 | |
| 4 | PA-H-4AS | 6.00 | 10.00 | |
| 5 | PA-H-5AS | 8.00 | 12.00 | |
| 6 | PA-H-6AS | 10.00 | 14.00 | |
| 7 | PA-H-7AS | 12.00 | 16.00 | |
| 8 | PA-H-8AS | 14.00 | 18.00 | |
| 9 | PA-H-9AS | 16.00 | 20.00 | |
| 10 | PA-H-10AS | 18.00 | 22.00 | |
| 11 | PA-H-11AS | 20.00 | 24.00 | |
| 12 | PA-H-12AS | 22.00 | 26.00 | |
| 13 | PA-H-13AS | 24.00 | 28.00 | |
| ~ | ~ | ~ | ~ | |
| 16 | PA-H-16AS | 30.00 | 34.00 | |
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 |
PA-H-2Y |
2.00 | 5.40 | |
| 3 |
PA-H-3Y |
4.00 | 7.40 | |
| 4 |
PA-H-4Y |
6.00 | 9.40 | |
| 5 |
PA-H-5Y |
8.00 | 11.40 | |
| 6 |
PA-H-6Y |
10.00 | 13.40 | |
| 7 |
PA-H-7Y |
12.00 | 15.40 | |
| 8 |
PA-H-8Y |
14.00 | 17.40 | |
| 9 |
PA-H-9Y |
16.00 | 19.40 | |
| 10 |
PA-H-10Y |
18.00 | 21.40 | |
| 11 |
PA-H-11Y |
20.00 | 23.40 | |
| 12 |
PA-H-12Y |
22.00 | 25.40 | |
| 13 |
PA-H-13Y |
24.00 | 27.40 | |
| ~ |
~ |
~ | ~ | |
| 16 |
PA-H-16Y |
30.00 | 33.40 | |
