Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |
Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||

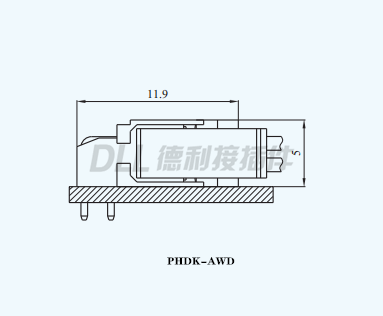

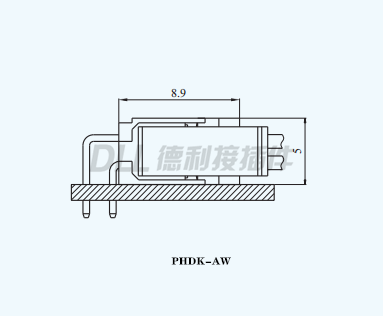

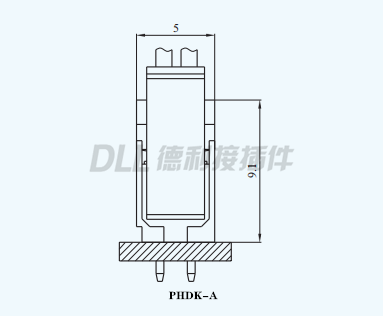

| 2x2 | PHDK-4A/PHDK-4AW/PHDK-4AWD | 2.00 | 8.00 | 5.00 |
| 2x3 | PHDK-6A/PHDK-6AW/PHDK-6AWD | 4.00 | 10.00 | 7.00 |
| 2x4 | PHDK-8A/PHDK-8AW/PHDK-8AWD | 6.00 | 12.00 | 9.00 |
| 2x5 | PHDK-10A/PHDK-10AW/PHDK-10AWD | 8.00 | 14.00 | 11.00 |
| 2x6 | PHDK-12A/PHDK-12AW/PHDK-12AWD | 10.00 | 16.00 | 13.00 |
| 2x7 | PHDK-14A/PHDK-14AW/PHDK-14AWD | 12.00 | 18.00 | 15.00 |
| 2x8 | PHDK-16A/PHDK-16AW/PHDK-16AWD | 14.00 | 20.00 | 17.00 |
| 2x9 | PHDK-18A/PHDK-18AW/PHDK-18AWD | 16.00 | 22.00 | 19.00 |
| 2x10 | PHDK-20A/PHDK-20AW/PHDK-20AWD | 18.00 | 24.00 | 21.00 |
| 2x11 | PHDK-22A/PHDK-22AW/PHDK-22AWD | 20.00 | 26.00 | 23.00 |
| 2x12 | PHDK-24A/PHDK-24AW/PHDK-24AWD | 22.00 | 28.00 | 25.00 |
| 2x13 | PHDK-26A/PHDK-26AW/PHDK-26AWD | 24.00 | 30.00 | 27.00 |
| 2x14 | PHDK-28A/PHDK-28AW/PHDK-28AWD | 26.00 | 32.00 | 29.00 |
| 2x15 | PHDK-30A/PHDK-30AW/PHDK-30AWD | 28.00 | 34.00 | 31.00 |
| 2x16 | PHDK-32A/PHDK-32AW/PHDK-32AWD | 30.00 | 36.00 | 33.00 |
| ~ | ~ | ~ | ~ | ~ |
| 2x30 | PHDK-60A/PHDK-60AW/PHDK-60AWD | 58.00 | 64.00 | 61.00 |
| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2x2 | PHDK-4Y | 2.00 | 4.60 | 9.00 |
| 2x3 | PHDK-6Y | 4.00 | 6.60 | 11.00 |
| 2x4 | PHDK-8Y | 6.00 | 8.60 | 13.00 |
| 2x5 | PHDK-10Y | 8.00 | 10.60 | 15.00 |
|
2x6 |
PHDK-12Y | 10.00 | 12.60 | 17.00 |
| 2x7 | PHDK-14Y | 12.00 | 14.60 | 19.00 |
| 2x8 | PHDK-16Y | 14.00 | 16.60 | 21.00 |
| 2x9 | PHDK-18Y | 16.00 | 18.60 | 23.00 |
| 2x10 | PHDK-20Y | 18.00 | 20.60 | 25.00 |
| 2x11 | PHDK-22Y | 20.00 | 22.60 | 27.00 |
| 2x12 | PHDK-24Y | 22.00 | 24.60 | 29.00 |
| 2x13 | PHDK-26Y | 24.00 | 26.60 | 31.00 |
| 2x14 | PHDK-28Y | 26.00 | 28.60 | 33.00 |
| 2x15 | PHDK-30Y | 28.00 | 30.60 | 35.00 |
| 2x16 | PHDK-32Y | 30.00 | 32.60 | 37.00 |
| ~ | ~ | ~ | ~ | ~ |
| 2x30 | PHDK-60Y | 58.00 | 60.60 | 65.00 |
