Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 800V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

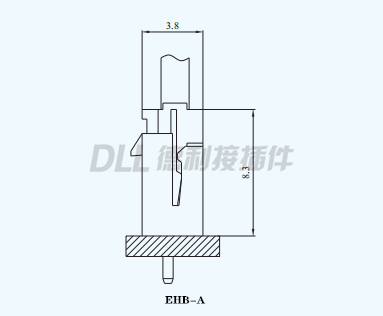

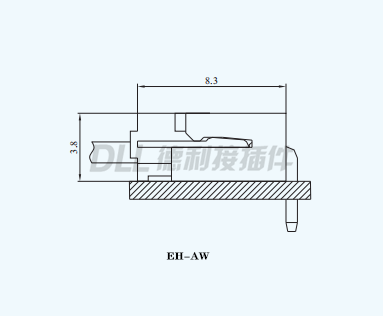

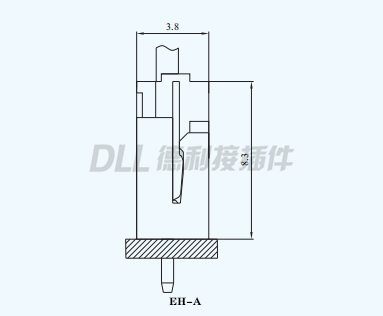

Drawing
Rosh
MSDS
| Circuits |
Type |
Dimensions(mm) | ||
|
A |
B | |||
| 2 | EH-2A/EH-2AW/EH-2AWD | EHB-2A/EHB-2AS | 2.50 | 7.50 |
| 3 | EH-3A/EH-3AW/EH-3AWD | EHB-3A/EHB-3AS | 5.00 | 10.00 |
| 4 | EH-4A/EH-4AW/EH-4AWD | EHB-4A/EHB-4AS | 7.50 | 12.50 |
| 5 | EH-5A/EH-5AW/EH-5AWD | EHB-5A/EHB-5AS | 10.00 | 15.00 |
| 6 |
EH-6A/EH-6AW/EH-6AWD |
EHB-6A/EHB-6AS | 12.50 | 17.50 |
| 7 | EH-7A/EH-7AW/EH-7AWD | EHB-7A/EHB-7AS | 15.00 | 20.00 |
| 8 | EH-8A/EH-8AW/EH-8AWD | EHB-8A/EHB-8AS | 17.50 | 22.50 |
| 9 | EH-9A/EH-9AW/EH-9AWD | EHB-9A/EHB-9AS | 20.00 | 25.00 |
| 10 | EH-10A/EH-10AW/EH-10AWD | EHB-10A/EHB-10AS | 22.50 | 27.50 |
| 11 | EH-11A/EH-11AW/EH-11AWD | EHB-11A/EHB-11AS | 25.00 | 30.00 |
| 12 | EH-12A/EH-12AW/EH-12AWD | EHB-12A/EHB-12AS | 27.50 | 32.50 |
| 13 | EH-13A/EH-13AW/EH-13AWD | EHB-13A/EHB-13AS | 30.00 | 35.00 |
| 14 | EH-14A/EH-14AW/EH-14AWD | EHB-14A/EHB-14AS | 32.50 | 37.50 |
| 15 | EH-15A/EH-15AW/EH-15AWD | EHB-15A/EHB-15AS | 35.00 | 40.00 |
| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2 | EH-2Y | 2.50 | 7.00 | 5.40 |
| 3 | EH-3Y | 5.00 | 9.50 | 7.90 |
| 4 | EH-4Y | 7.50 | 12.00 | 10.40 |
| 5 | EH-5Y | 10.00 | 14.50 | 12.90 |
| 6 | EH-6Y | 12.50 | 17.00 | 15.40 |
| 7 | EH-7Y | 15.00 | 19.50 | 17.90 |
| 8 | EH-8Y | 17.50 | 22.00 | 20.40 |
| 9 | EH-9Y | 20.00 | 24.50 | 22.90 |
| 10 | EH-10Y | 22.50 | 27.00 | 25.40 |
| 11 | EH-11Y | 25.00 | 29.50 | 27.90 |
| 12 | EH-12Y | 27.50 | 32.00 | 30.40 |
| 13 | EH-13Y | 30.00 | 34.50 | 32.90 |
| 14 | EH-14Y | 32.50 | 37.00 | 35.40 |
| 15 | EH-15Y | 35.00 | 39.50 | 37.90 |
