Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

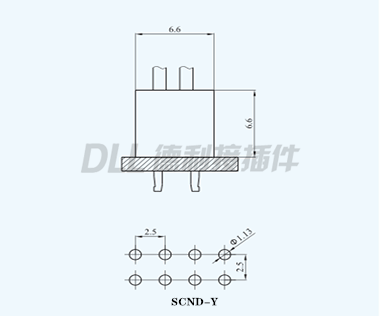

Drawing
Rosh
MSDS
注：以上圖紙僅供參考,詳情請(qǐng)咨詢我司銷售人員
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2x2 | SCND-4Y | 2.50 | 6.50 | |
| 2x3 | SCND-6Y | 5.00 | 9.00 | |
| 2x4 | SCND-8Y | 7.50 | 11.50 | |
| 2x5 | SCND-10Y | 10.00 | 14.00 | |
| 2x6 | SCND-12Y | 12.50 | 16.50 | |
| 2x7 | SCND-14Y | 15.00 | 19.00 | |
| 2x8 | SCND-16Y | 17.50 | 21.50 | |
| 2x9 | SCND-18Y | 20.00 | 24.00 | |
| 2x10 | SCND-20Y | 22.50 | 26.50 | |
| 2x11 | SCND-22Y | 25.00 | 29.00 | |
| 2x12 | SCND-24Y | 27.50 | 31.50 | |
| 2x13 | SCND-26Y | 30.00 | 34.00 | |
| 2x14 | SCND-28Y | 32.50 | 36.50 | |
| 2x15 | SCND-30Y | 35.00 | 39.00 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | SCND-40Y | 47.50 | 51.50 | |
