Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated voltage | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

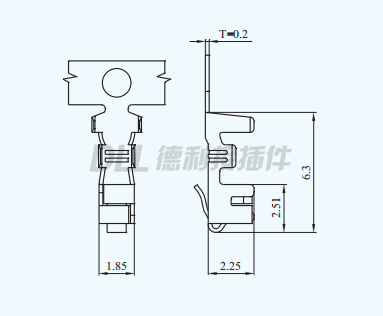

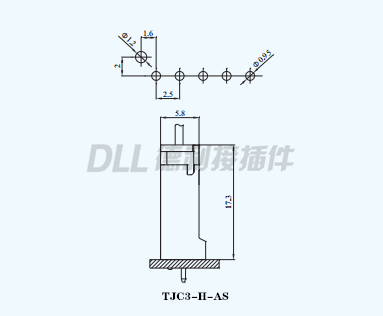

Drawing
Rosh
MSDS
注：以上圖紙僅供參考,詳情請(qǐng)咨詢我司銷售人員
| Circuits | Type | Dimensions(mm) | |||
| A | B | C | |||
| 2 |
TJC3-H-2AS/TJC3-H-2Y |
2.50 | 7.50 | 7.30 | |
| 3 |
TJC3-H-3AS/TJC3-H-3Y |
5.00 | 10.00 | 9.80 | |
| 4 |
TJC3-H-4AS/TJC3-H-4Y |
7.50 | 12.50 | 12.30 | |
| 5 |
TJC3-H-5AS/TJC3-H-5Y |
10.00 | 15.00 | 14.80 | |
| 6 |
TJC3-H-6AS/TJC3-H-6Y |
12.50 | 17.50 | 17.30 | |
| 7 |
TJC3-H-7AS/TJC3-H-7Y |
15.00 | 20.00 | 19.80 | |
| 8 |
TJC3-H-8AS/TJC3-H-8Y |
17.50 | 22.50 | 22.30 | |
| 9 |
TJC3-H-9AS/TJC3-H-9Y |
20.00 | 25.00 | 24.80 | |
| 10 |
TJC3-H-10AS/TJC3-H-10Y |
22.50 | 27.50 | 27.30 | |
| 11 |
TJC3-H-11AS/TJC3-H-11Y |
25.00 | 30.00 | 29.80 | |
| ~ |
~ |
~ | ~ | ~ | |
| 20 |
TJC3-H-20AS/TJC3-H-20Y |
47.50 | 52.50 | 52.30 | |
