Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3.5A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

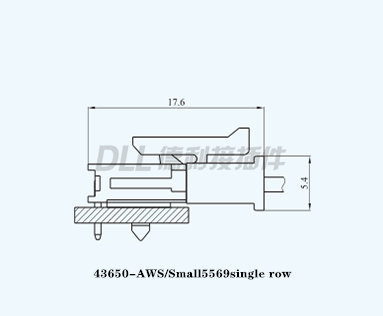

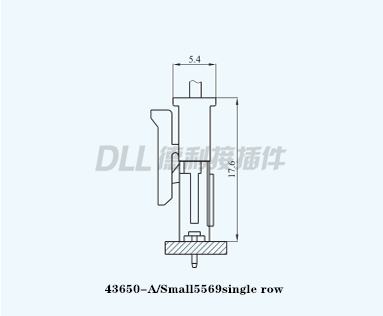

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2 | 43645-2A/43645-2AWS | 3.00 | 9.60 | / |
| 3 | 43645-3A/43645-3AWS | 6.00 | 12.60 | / |
| 4 | 43645-4A/43645-4AWS | 9.00 | 15.60 | 4.70 |
| 5 | 43645-5A/43645-5AWS | 12.00 | 18.60 | 7.70 |
| 6 | 43645-6A/43645-6AWS | 15.00 | 21.60 | 10.70 |
| 7 | 43645-7A/43645-7AWS | 18.00 | 24.60 | 13.70 |
| 8 | 43645-8A/43645-8AWS | 21.00 | 27.60 | 16.70 |
| 9 | 43645-9A/43645-9AWS | 24.00 | 30.60 | 19.70 |
| 10 | 43645-10A/43645-10AWS | 27.00 | 33.60 | 22.70 |
| 11 | 43645-11A/43645-11AWS | 30.00 | 36.60 | 25.70 |
| 12 | 43645-12A/43645-12AWS | 33.00 | 39.60 | 28.70 |
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | 43645-2Y | 3.00 | 6.90 |
| 3 | 43645-3Y | 6.00 | 9.90 |
| 4 | 43645-4Y | 9.00 | 12.90 |
| 5 | 43645-5Y | 12.00 | 15.90 |
| 6 | 43645-6Y | 15.00 | 18.90 |
| 7 | 43645-7Y | 18.00 | 21.90 |
| 8 | 43645-8Y | 21.00 | 24.90 |
| 9 | 43645-9Y | 24.00 | 27.90 |
| 10 | 43645-10Y | 27.00 | 30.90 |
| 11 | 43645-11Y | 30.00 | 33.90 |
| 12 | 43645-12Y | 33.00 | 36.90 |
