Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 600V AC，DC |
| Rated current | 20A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 2000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |

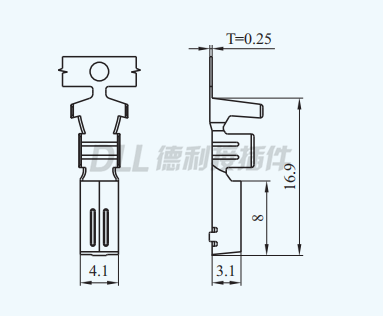

| Terminal | Phosphor bronze,Tin plated |

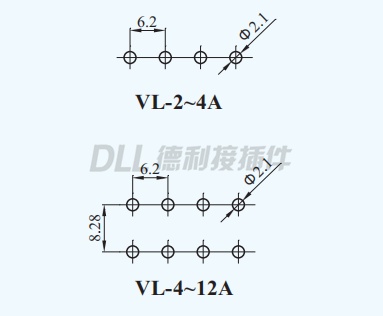

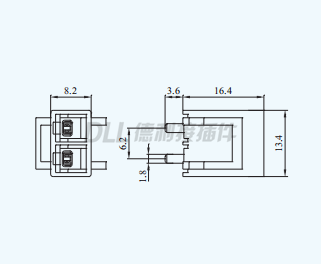

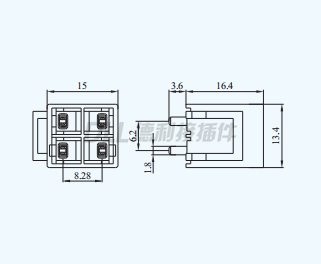

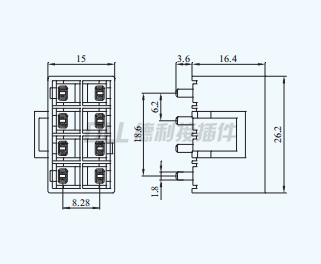

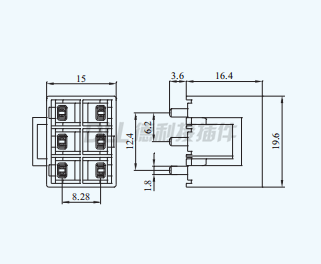

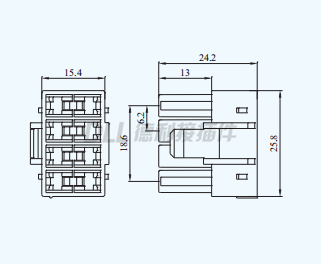

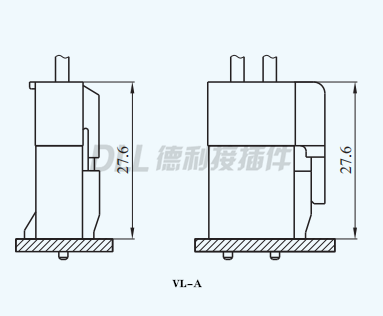

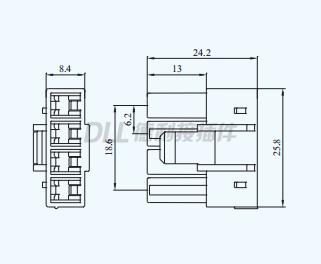

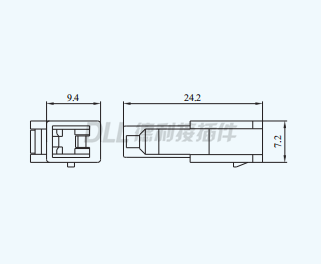

Drawing
Rosh
MSDS
| Circuits | Rated voltage | Rated current |
Plug Housing |
Receptacle Housing |
| 1 | 300V | 20A |
DL62002-1Y(VL-1Y)  |
 |
| 2 | 300V | 20A |
DL62002-2Y(VL-2Y)  |
DL62002-2A(VL-2A)  |
| 3 | 300V | 19A |
DL62002-3Y(VL-3Y)  |
DL62002-3A(VL-3A)  |
| 4 | 300V | 18A |
DL62002-4YM(VL-4YM)  |
DL62002-4AM(VL-4AM)  |
| 4 | 300V | 18A |
DL62002-4Y(VL-4Y)  |
DL62002-4A(VL-4A)  |
| 6 | 300V | 16A |
DL62002-6Y(VL-6Y)  |
DL62002-6A(VL-6A)  |
| 8 | 300V | 15A |
DL62002-8Y(VL-8Y)  |
DL62002-8A(VL-8A)  |
| 12 | 300V | 15A |
DL62002-12Y(VL-12Y)  |
DL62002-12A(VL-12A)  |
