Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 300V AC，DC |
| Rated current | 15A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | （Nylon）UL94-V0(2) |
| Wafer | （Nylon）UL94-V0(2) |
| Lock | （Nylon）UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

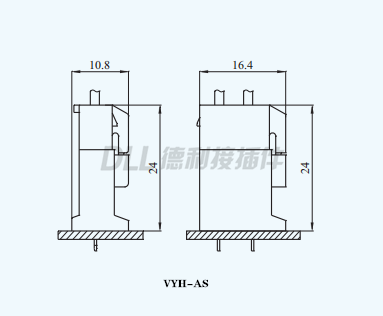

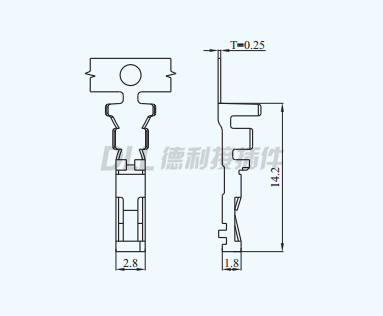

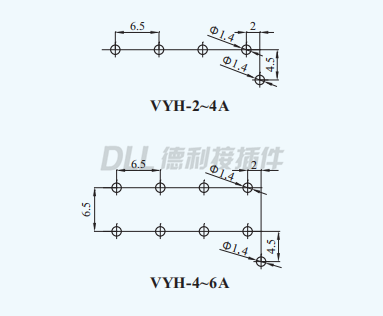

Drawing
Rosh
MSDS
| Circuits |
Plug Housing |
Receptacle Housing |
Retainer |
| 2 |
DL65001-2Y(VYH-2Y)  |
DL65001-2AS(VYH-2AS)  |
DL65001-2S(VYH-2S)  |
| 3 |
DL65001-3Y(VYH-3Y)  |
DL65001-3AS(VYH-3AS)  |
DL65001-3S(VYH-3S)  |
| 4 |
DL65001-4YM(VYH-4YM)  |
DL65001-4ASM(VYH-4ASM)  |
DL65001-4S(VYH-4S)  |
| 4 |
DL65001-4Y(VYH-4Y)  |
DL65001-4AS(VYH-4AS)  |
DL65001-2S(VYH-2S)  |
| 6 |
DL65001-6Y(VYH-6Y)  |
DL65001-6AS(VYH-6AS)  |
DL65001-3S(VYH-3S)  |
