Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 7A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

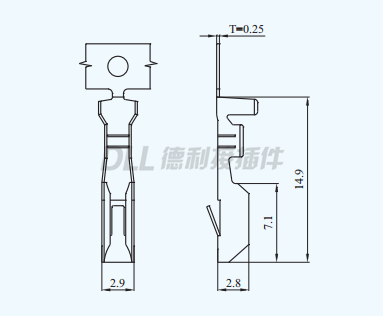

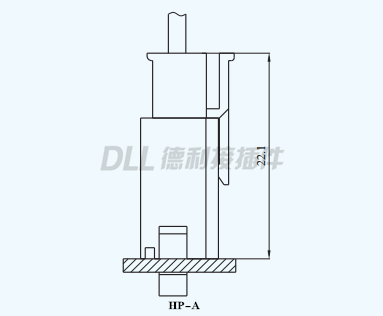

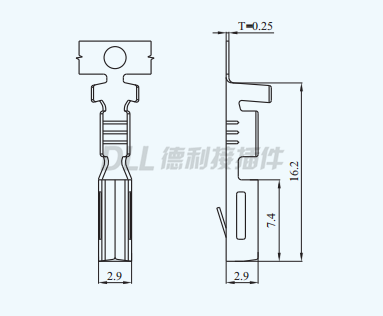

Drawing
Rosh
MSDS
| Circuits |
Plug Housing |
Receptacle Housing |
Mounting measurement |
| 2 |
DL80001-1A-2.1(HP2.1-1A)  |
DL80001-1A-2.36(HP2.36-1A)  |
 |
| 3 |
DL80001-2Y-2.1(HP2.1-2Y)  |
DL80001-2A-2.1(HP2.1-2A)  |
 |
| 4 |
DL80001-2A-2.36(HP2.36-2A)  |
||
| 4 |
DL80001-3Y-2.1(HP2.1-3Y)  |
DL80001-3A-2.1(HP2.1-3A)  |
 |
| 6 |
DL80001-3A-2.36(HP2.36-3A)  |
