Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 630V AC，DC |
| Rated current | 60A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 3000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | PBTUL94-V0(2) |
| Wafer | PBTUL94-V0(2) |

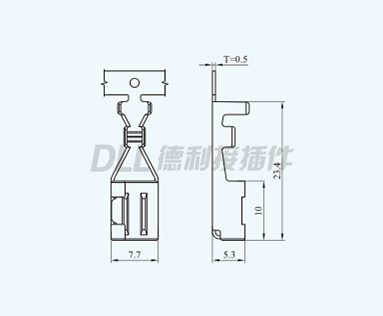

| Terminal | Phosphor bronze,Gold plated |

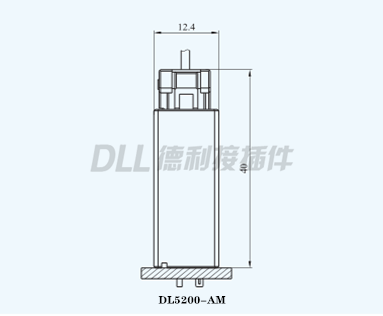

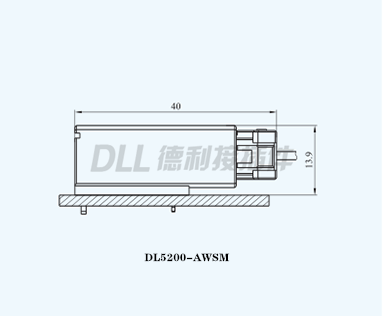

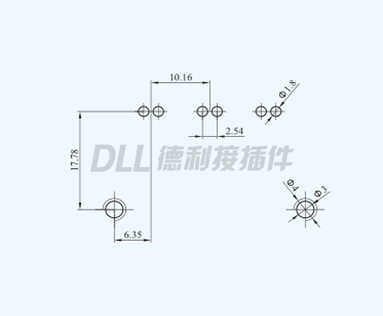

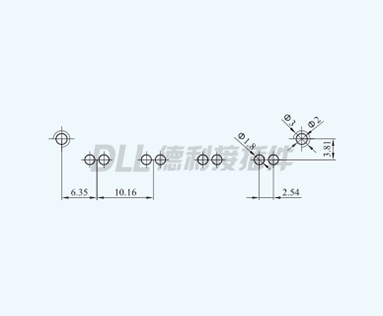

Drawing
Rosh
MSDS

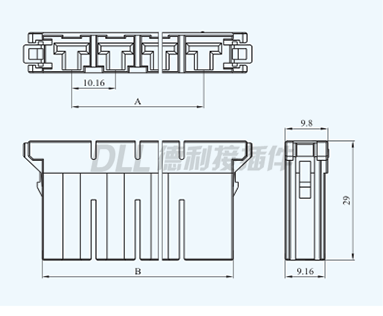

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | DL5200-2AWM/DL5200-2AWSM | 10.16 | 29.36 |
| 3 | DL5200-3AWM/DL5200-3AWSM | 20.32 | 39.52 |
| 4 | DL5200-4AWM/DL5200-4AWSM | 30.48 | 49.68 |
| 5 | DL5200-5AWM/DL5200-5AWSM | 40.64 | 59.84 |
| 6 | DL5200-6AWM/DL5200-6AWSM | 50.80 | 70.00 |

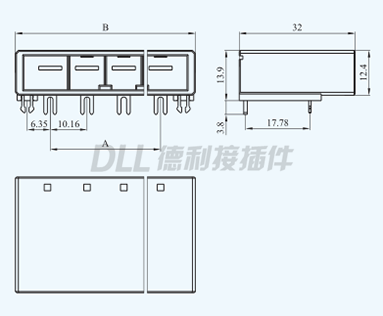

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | DL5200-2YM | 10.16 | 23.76 |
| 3 | DL5200-3YM | 20.32 | 33.92 |
| 4 | DL5200-4YM | 30.48 | 44.08 |
| 5 | DL5200-5YM | 40.64 | 54.24 |
| 6 | DL5200-6YM | 50.80 | 64.40 |
