Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 50V AC，DC |
| Rated current | 0.7A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 500M min |
| Withstand voltage | 500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94V-0（2） |
| Terminal | Phosphor bronze,Tin plated |

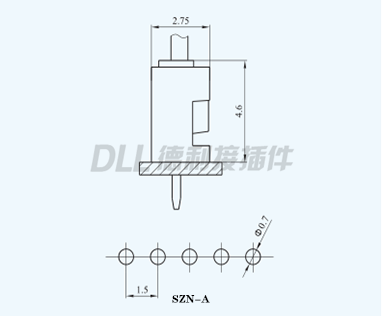

Drawing
Rosh
MSDS
注：以上圖紙僅供參考,詳情請咨詢我司銷售人員
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | SZN-2Y | 1.50 | 3.70 | |
| 3 | SZN-3Y | 3.00 | 5.20 | |
| 4 | SZN-4Y | 4.50 | 6.70 | |
| 5 | SZN-5Y | 6.00 | 8.20 | |
| 6 | SZN-6Y | 7.50 | 9.70 | |
| 7 | SZN-7Y | 9.00 | 11.20 | |
| 8 | SZN-8Y | 10.50 | 12.70 | |
| 9 | SZN-9Y | 12.00 | 14.20 | |
| 10 | SZN-10Y | 13.50 | 15.70 | |
| 11 | SZN-11Y | 15.00 | 17.20 | |
| ~ | ~ | ~ | ~ | |
| 15 | SZN-15Y | 21.00 | 23.20 | |
