Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 2A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 800V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94V-0（2） |
| Terminal | Phosphor bronze,Tin plated |

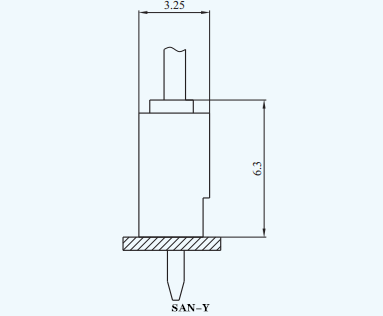

Drawing
Rosh
MSDS
注：以上圖紙僅供參考,詳情請(qǐng)咨詢我司銷售人員
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | SAN-2Y | 2.00 | 5.50 | |
| 3 | SAN-3Y | 4.00 | 7.50 | |
| 4 | SAN-4Y | 6.00 | 9.50 | |
| 5 | SAN-5Y | 8.00 | 11.50 | |
| 6 | SAN-6Y | 10.00 | 13.50 | |
| 7 | SAN-7Y | 12.00 | 15.50 | |
| 8 | SAN-8Y | 14.00 | 17.50 | |
| 9 | SAN-9Y | 16.00 | 19.50 | |
| 10 | SAN-10Y | 18.00 | 21.50 | |
| 11 | SAN-11Y | 20.00 | 23.50 | |
| 12 | SAN-12Y | 22.00 | 25.50 | |
| 13 | SAN-13Y | 24.00 | 27.50 | |
| ~ | ~ | ~ | ~ | |
| 16 | SAN-16Y | 30.00 | 33.50 | |
