Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 2A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 800V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94V-0（2） |
| Terminal | Phosphor bronze,Tin plated |

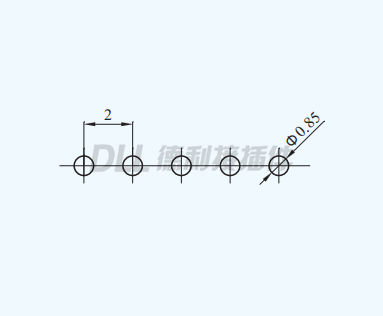

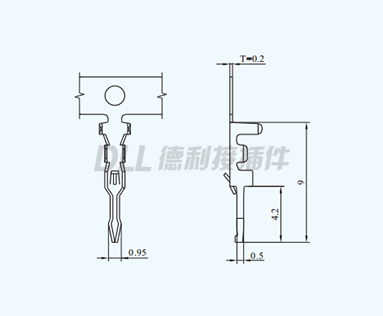

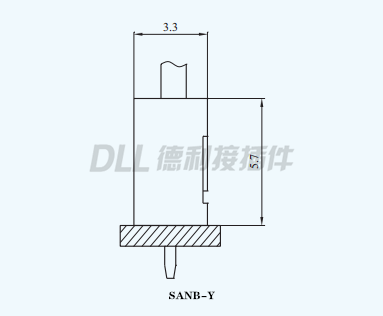

Drawing
Rosh
MSDS
注：以上圖紙僅供參考,詳情請(qǐng)咨詢我司銷售人員
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | SANB-2Y | 2.00 | 4.50 | |
| 3 | SANB-3Y | 4.00 | 6.50 | |
| 4 | SANB-4Y | 6.00 | 8.50 | |
| 5 | SANB-5Y | 8.00 | 10.50 | |
| 6 | SANB-6Y | 10.00 | 12.50 | |
| 7 | SANB-7Y | 12.00 | 14.50 | |
| 8 | SANB-8Y | 14.00 | 16.50 | |
| 9 | SANB-9Y | 16.00 | 18.50 | |
| 10 | SANB-10Y | 18.00 | 20.50 | |
| 11 | SANB-11Y | 20.00 | 22.50 | |
| 12 | SANB-12Y | 22.00 | 24.50 | |
| 13 | SANB-13Y | 24.00 | 26.50 | |
| ~ | ~ | ~ | ~ | |
| 16 | SANB-16Y | 30.00 | 32.50 | |
