Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 7A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94V-0（2） |
| Terminal | Phosphor bronze,Tin plated |

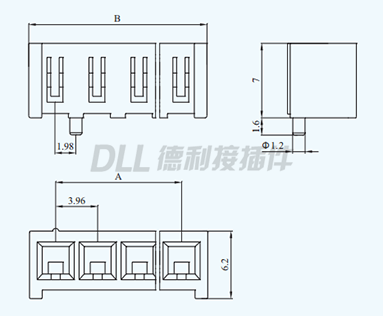

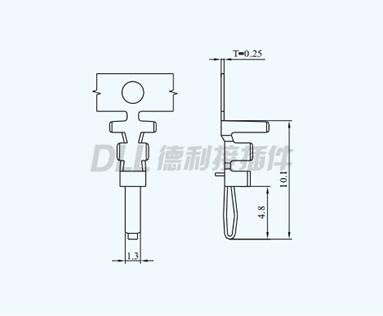

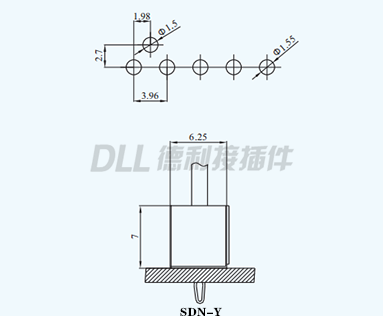

Drawing
Rosh
MSDS
注：以上圖紙僅供參考,詳情請咨詢我司銷售人員
| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | SDN-2Y | 3.96 | 9.02 | |
| 3 | SDN-3Y | 7.92 | 12.98 | |
| 4 | SDN-4Y | 11.88 | 16.94 | |
| 5 | SDN-5Y | 15.84 | 20.90 | |
| 6 | SDN-6Y | 19.80 | 24.86 | |
| 7 | SDN-7Y | 23.76 | 28.82 | |
| 8 | SDN-8Y | 27.72 | 32.78 | |
| 9 | SDN-9Y | 31.68 | 36.74 | |
| 10 | SDN-10Y | 35.64 | 40.70 | |
| 11 | SDN-11Y | 39.60 | 44.66 | |
| 12 | SDN-12Y | 43.56 | 48.62 | |
