Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 10A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

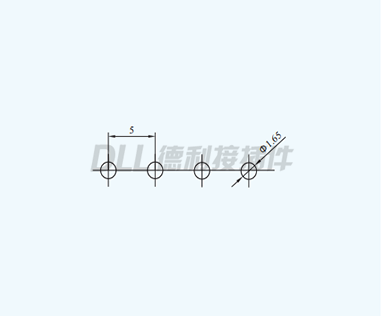

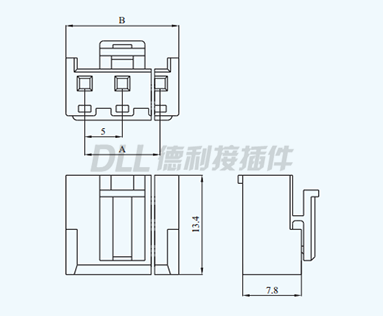

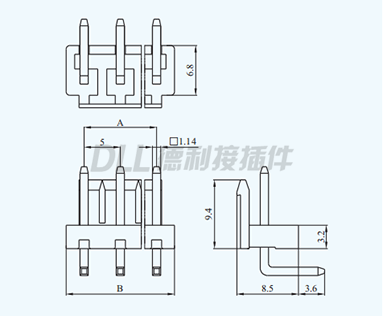

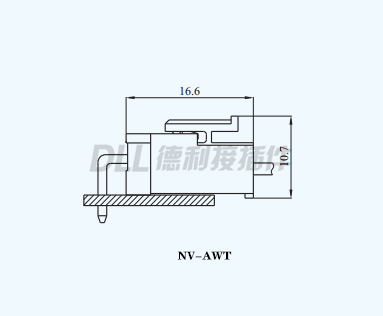

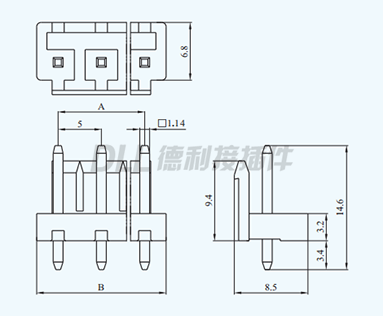

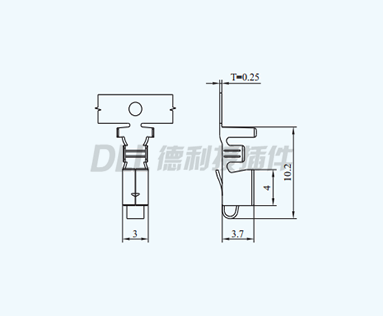

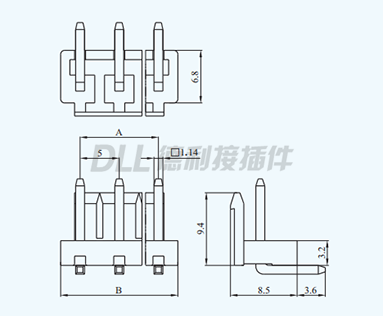

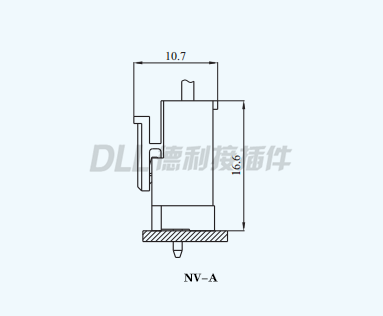

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | NV-2A/NV-2AW/NV-2AWT | 5.00 | 10.00 |
| 3 | NV-3A/NV-3AW/NV-3AWT | 10.00 | 15.00 |
| 4 | NV-4A/NV-4AW/NV-4AWT | 15.00 | 20.00 |
| 5 | NV-5A/NV-5AW/NV-5AWT | 20.00 | 25.00 |
| 6 | NV-6A/NV-6AW/NV-6AWT | 25.00 | 30.00 |
| 7 | NV-7A/NV-7AW/NV-7AWT | 30.00 | 35.00 |
| 8 | NV-8A/NV-8AW/NV-8AWT | 35.00 | 40.00 |
| 9 | NV-9A/NV-9AW/NV-9AWT | 40.00 | 45.00 |
| 10 | NV-10A/NV-10AW/NV-10AWT | 45.00 | 50.00 |
| 11 | NV-11A/NV-11AW/NV-11AWT | 50.00 | 55.00 |
| 12 | NV-12A/NV-12AW/NV-12AWT | 55.00 | 60.00 |
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | NV-2Y | 5.00 | 10.00 |
| 3 | NV-3Y | 10.00 | 15.00 |
| 4 | NV-4Y | 15.00 | 20.00 |
| 5 | NV-5Y | 20.00 | 25.00 |
| 6 | NV-6Y | 25.00 | 30.00 |
| 7 | NV-7Y | 30.00 | 35.00 |
| 8 | NV-8Y | 35.00 | 40.00 |
| 9 | NV-9Y | 40.00 | 45.00 |
| 10 |
NV-10Y |
45.00 | 50.00 |
| 11 | NV-11Y | 50.00 | 55.00 |
| 12 | NV-12Y | 55.00 | 60.00 |
