                                            DL60001 (LB Series)







        DL60001 (LB Series)




        Pitch：6.0mm
        Category：Wire To Wire Connector











				Specifications






				Rated voltage


				300V AC，DC






				Rated current


				10A AC, DC






				Contact resistance


				10m max






				Insulation resistance


				1000M min






				Withstand voltage


				1500V AC/minute






				Ambient temperature


				-25°C?+85°C






				Wire range


				AWG#22?#16






				Materials






				Plug Housing


				Nylon UL94-V0(2)






				Terminal


				Phosphor bronze, Tin plated








                                            Drawing

        Rosh
        MSDS












		DL60001-6Y(LB-6Y)

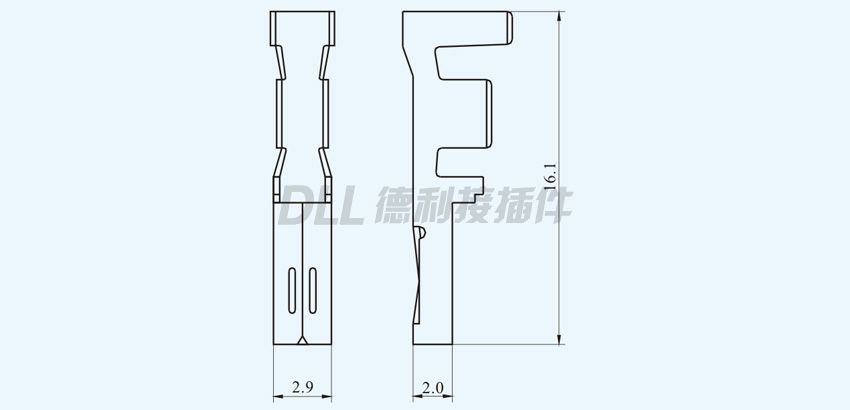

		DL60001-T(LB-T)











	Note: The above drawings are for reference only, please consult our sales staff for details















        •
