Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 500M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Receptacle Housing | (Nylon)UL94-V0(2) |
| Plug Housing | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

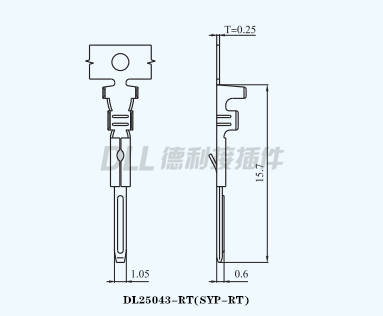

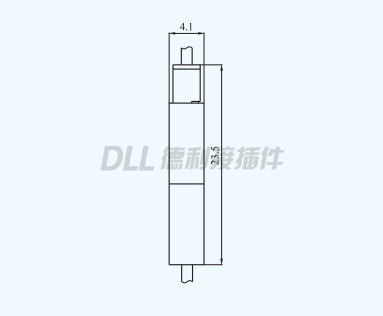

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | SYP-2Y | 2.50 | 6.30 |
| 3 | SYP-3Y | 5.00 | 8.80 |
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | SYP-2R | 2.50 | 6.80 |
| 3 | SYP-3R | 5.00 | 9.30 |
