Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 15A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Receptacle Housing | PBTUL94-V0(2) |
| PLug Housing | PBTUL94-V0(2) |
| Terminal | Phosphor bronze,Gold plated |

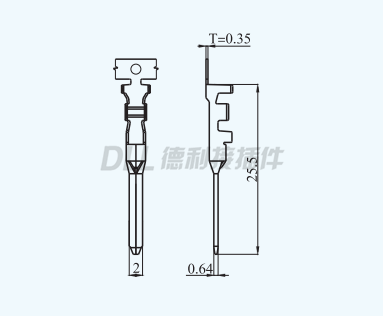

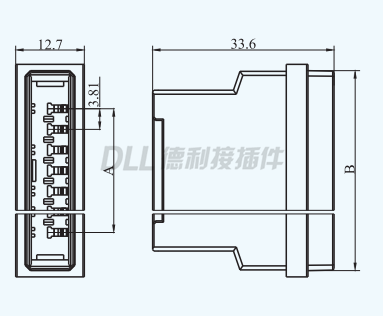

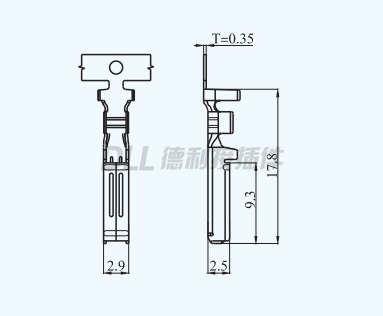

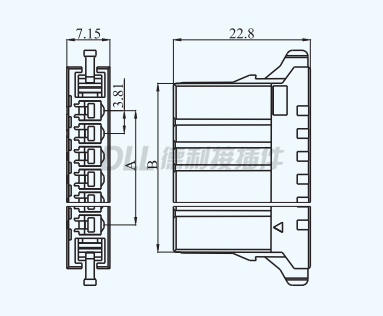

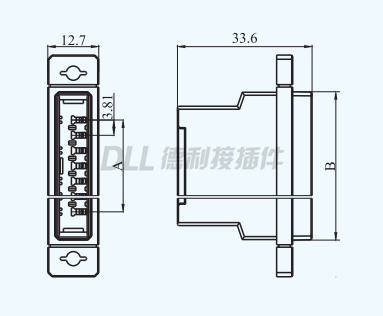

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | |
| A |
B |
||
| 2 |
DL3810-2YM |
3.81 |
12.89 |
|
3 |
DL3810-3YM |
7.62 | 16.70 |
| 4 |
DL3810-4YM |
11.43 | 20.51 |
| 5 |
DL3810-5YM |
15.24 | 24.32 |
| 6 |
DL3810-6YM |
19.05 | 28.13 |
| 7 |
DL3810-7YM |
22.86 | 31.94 |
| 8 |
DL3810-8YM |
26.67 | 35.75 |
| 9 |
DL3810-9YM |
30.48 | 39.56 |
| 10 |
DL3810-10YM |
34.29 | 43.37 |
| 11 |
DL3810-11YM |
38.10 |
47.18 |
| 12 |
DL3810-12YM |
41.91 | 50.99 |
| Circuits | Type | Dimensions(mm) | |
| A |
B |
||
| 2 |
DL3810-2RM/DL3810-2RFM |
3.81 |
17.81 |
| 3 |
DL3810-3RM/DL3810-3RFM |
7.62 |
21.62 |
| 4 |
DL3810-4RM/DL3810-4RFM |
11.43 |
25.43 |
| 5 |
DL3810-5RM/DL3810-5RFM |
15.24 | 29.24 |
| 6 | DL3810-6RM/DL3810-6RFM | 19.05 | 33.05 |
| 7 | DL3810-7RM/DL3810-7RFM | 22.86 | 36.86 |
| 8 |
DL3810-8RM/DL3810-8RFM |
26.67 | 40.67 |
| 9 |
DL3810-9RM/DL3810-9RFM |
30.48 | 44.48 |
| 10 |
DL3810-10RM/DL3810-10RFM |
34.29 | 48.29 |
| 11 |
DL3810-11RM/DL3810-11RFM |
38.10 | 52.10 |
| 12 |
DL3810-12RM/DL3810-12RFM |
41.91 | 55.91 |
