Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 300V AC，DC |
| Rated current | 7A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Receptacle Housing | (Nylon)UL94-V0(2) |
| Plug Housing | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

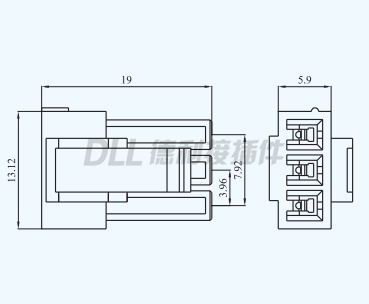

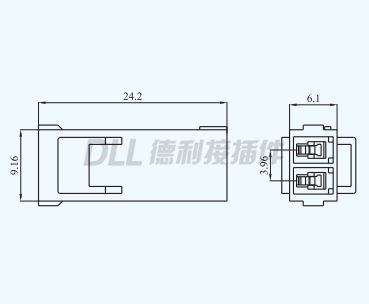

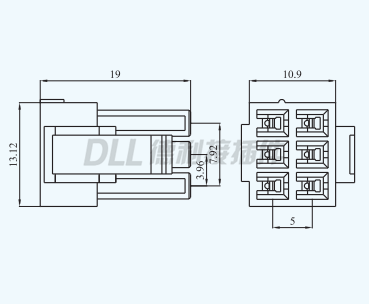

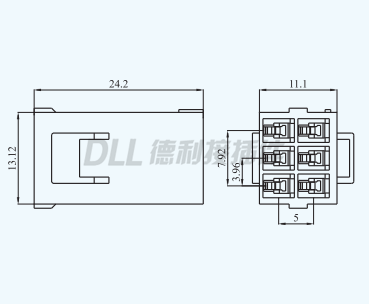

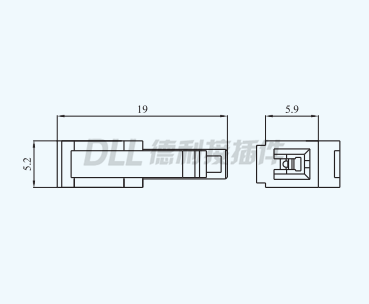

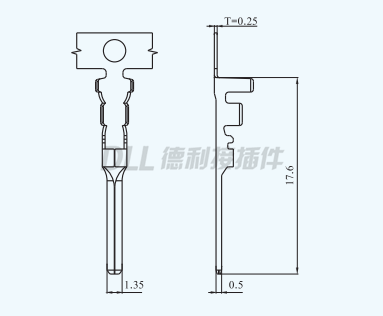

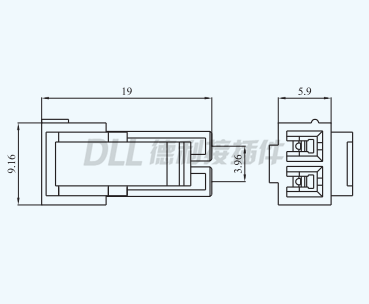

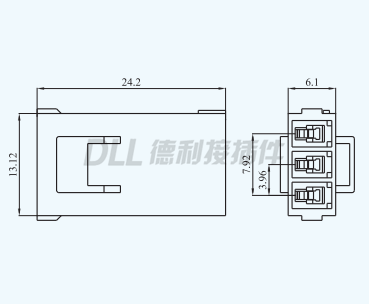

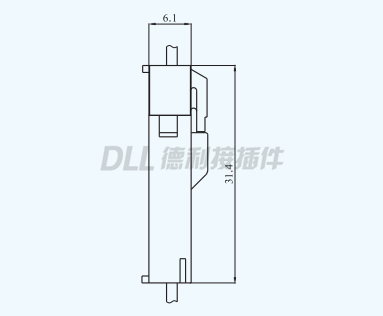

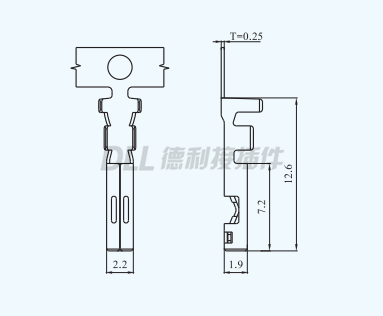

Drawing
Rosh
MSDS
|
Circuits |
Rated voltage | Rated current |
Plug Housing |
Receptacle Housing |
|
2 |
300V | 7A |
DL39613-1Y(SLP-1Y)  |
DL39613-1R(SLP-1R)  |
|
2 |
300V | 7A |
DL39613-2Y(SLP-2Y)  |
DL39613-2R(SLP-2R)  |
|
3 |
300V | 6A |
DL39613-3Y(SLP-3Y)  |
DL39613-3R(SLP-3R)  |
|
4 |
300V | 6A |
DL39613-4Y(SLP-4Y)  |
DL39613-4R(SLP-4R)  |
|
6 |
300V | 6A |
DL39613-6Y(SLP-6Y)  |
DL39613-6R(SLP-6R)  |
