Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 300V AC，DC |
| Rated current | 10A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Receptacle Housing | (Nylon)UL94-V0(2) |
| PLug Housing | (Nylon)UL94-V0(2) |

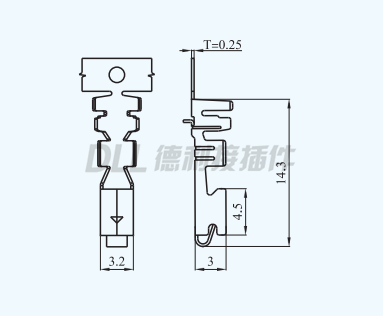

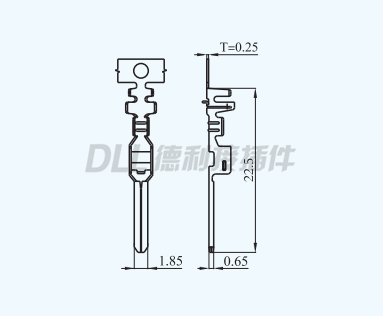

| Terminal | Phosphor bronze,Tin plated |
|
Lock |
(Nylon)UL94-V0(2) |

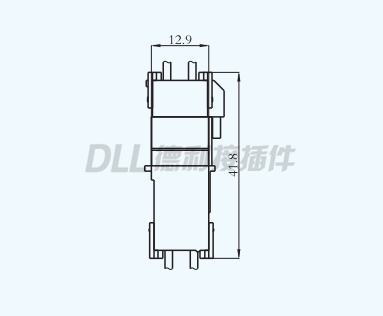

Drawing
Rosh
MSDS
| Circuits | Rated voltage | Rated current |
Plug Housing |
Receptacle Housing |
Retainer |
| 2 | 300V | 10A |
DL50006-2Y(ZL-2Y)  |
DL50006-2R(ZL-2R)  |
DL50006-2S(ZL-2S)  |
| 4 | 300V | 9A |
DL50006-4Y(ZL-4Y)  |
DL50006-4R(ZL-4R)  |
DL50006-4S(ZL-2S)  |
| 6 | 300V | 8A |
DL50006-6Y(ZL-6Y)  |
DL50006-6R(ZL-6R)  |
DL50006-3S(ZL-3S)  |
| 8 | 300V | 6A |
DL50006-8Y(ZL-8Y)  |
DL50006-8R(ZL-8R)  |
DL50006-4S(ZL-4S)  |
| 12 | 300V | 6A |
DL50006-12Y(ZL-12Y)  |
DL50006-12R(ZL-12R)  |
DL50006-6S(ZL-6S)  |
| 16 | 300V | 5A |
DL50006-16Y(ZL-16Y)  |
DL50006-16R(ZL-16R)  |
DL50006-8S(ZL-8S)  |
