Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 630V AC,DC |
| Rated current | 60A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 3000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Receptacle Housing | PBTUL94-V0(2) |
| Plug Housing | PBTUL94-V0(2) |

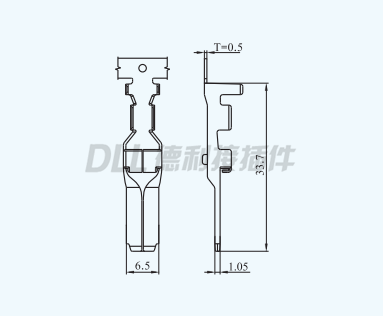

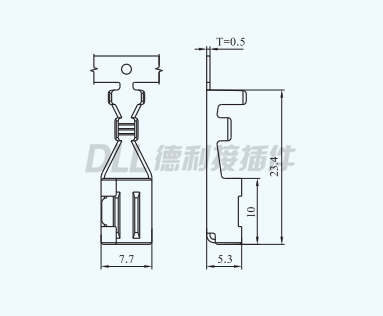

| Terminal | Phosphor bronze,Gold plated |

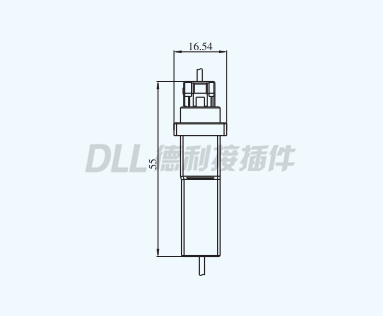

Drawing
Rosh
MSDS

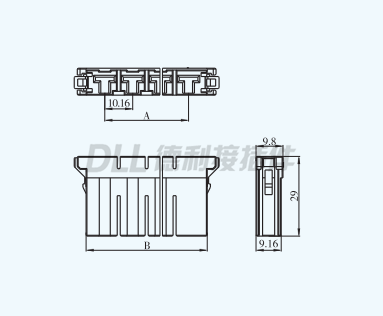

| Circuits | Type | Dimensions(mm) | |
| A |
B |
||
| 2 |
DL5200-2YM |
10.16 |
23.76 |
|
3 |
DL5200-3YM |
20.32 | 33.92 |
| 4 |
DL5200-4YM |
30.48 | 44.08 |
| 5 |
DL5200-5YM |
40.64 | 54.24 |
| 6 | DL5200-6YM | 50.80 | 64.40 |

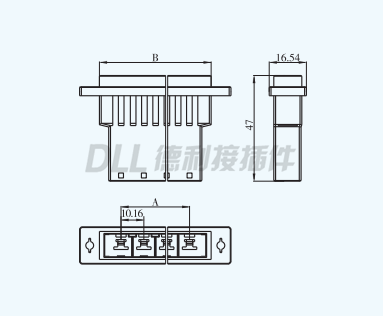

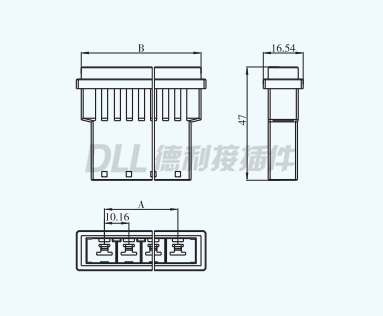

| Circuits | Type | Dimensions(mm) | |
| A |
B |
||
| 2 |
DL5200-2RM/DL5200-2RFM |
10.16 |
29.36 |
| 3 |
DL5200-3RM/DL5200-3RFM |
20.32 |
39.52 |
| 4 |
DL5200-4RM/DL5200-4RFM |
30.48 |
49.68 |
| 5 |
DL5200-5RM/DL5200-5RFM |
40.64 | 59.84 |
| 6 | DL5200-6RM/DL5200-6RFM | 50.80 | 70.00 |
