Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 5A AC, DC |
| Contact resistance | 10m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
|
|
|
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

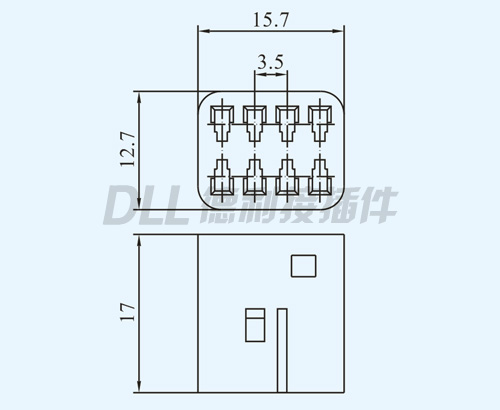

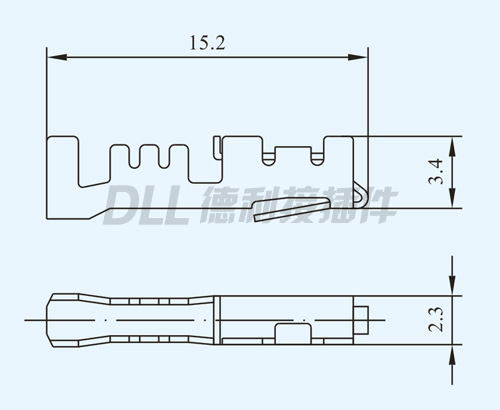

Drawing
Rosh
MSDS
Note: The above drawings are for reference only, please consult our sales staff for details
