| 技術特性 | |
| 額定電壓 | 50V AC，DC |
| 額定電流 | 1A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 100M min |
| 耐壓 | 250V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 適用線規(guī) | AWG#32?#28 |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫/金 |
參考圖紙
Rosh
MSDS

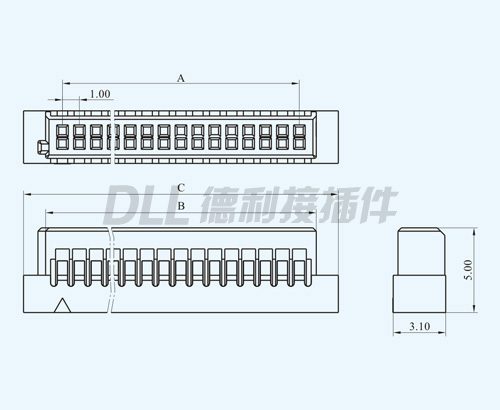

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2×3 | DF20B-6Y | 2.0 | 4.0 | 6.6 |
| 2×4 | DF20B-8Y | 3.0 | 5.0 | 7.6 |
| 2×5 | DF20B-10Y | 4.0 | 6.0 | 8.6 |
| 2×6 | DF20B-12Y | 5.0 | 7.0 | 9.6 |
| 2×7 | DF20B-14Y | 6.0 | 8.0 | 10.6 |
| 2×8 | DF20B-16Y | 7.0 | 9.0 | 11.6 |
| 2×9 | DF20B-18Y | 8.0 | 10.0 | 12.6 |
| 2×10 | DF20B-20Y | 9.0 | 11.0 | 13.6 |
| 2×11 | DF20B-22Y | 10.0 | 12.0 | 14.6 |
| 2×12 | DF20B-24Y | 11.0 | 13.0 | 15.6 |
| 2×13 | DF20B-26Y | 12.0 | 14.0 | 16.6 |
| 2×14 | DF20B-28Y | 13.0 | 15.0 | 17.6 |
| 2×15 | DF20B-30Y | 14.0 | 16.0 | 18.6 |
| 2×16 | DF20B-32Y | 15.0 | 17.0 | 19.6 |
| 2×17 | DF20B-34Y | 16.0 | 18.0 | 20.6 |
| 2×18 | DF20B-36Y | 17.0 | 19.0 | 21.6 |
| 2×19 | DF20B-38Y | 18.0 | 20.0 | 22.6 |
| 2×20 | DF20B-40Y | 19.0 | 21.0 | 23.6 |
| 2×21 | DF20B-42Y | 20.0 | 22.0 | 24.6 |
| 2×22 | DF20B-44Y | 21.0 | 23.0 | 25.6 |
| 2×23 | DF20B-46Y | 22.0 | 24.0 | 26.6 |
| 2×24 | DF20B-48Y | 23.0 | 25.0 | 27.6 |
| 2×25 | DF20B-50Y | 24.0 | 26.0 | 28.6 |
| ~ | ~ | ~ | ~ | ~ |
