| 技術特性 | |
| 額定電壓 | 50V AC，DC |
| 額定電流 | 1A AC, DC |
| 接觸電阻 | 30m max |
| 絕緣電阻 | 100M min |
| 耐壓 | 500V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| SMT針座 | LCP UL94-V0 |

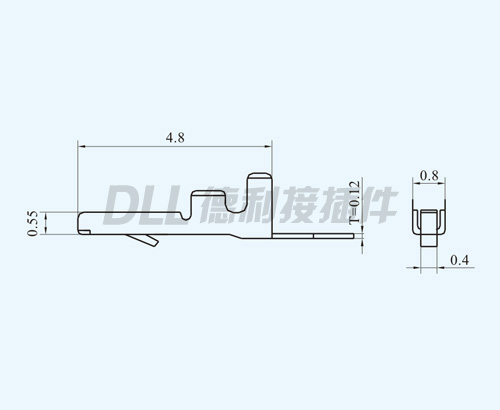

| 端子 | 磷青銅,鍍錫 |

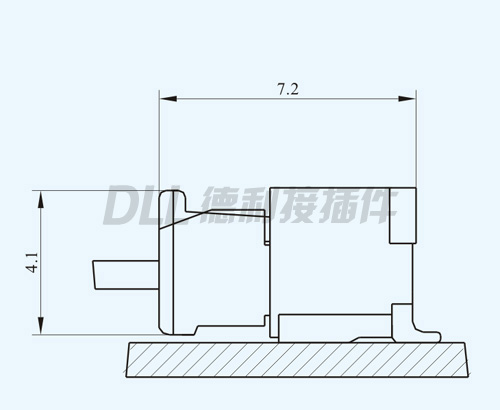

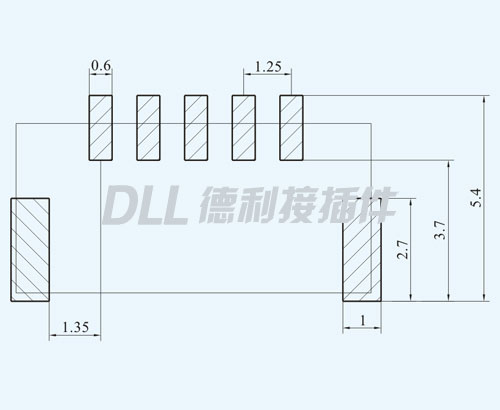

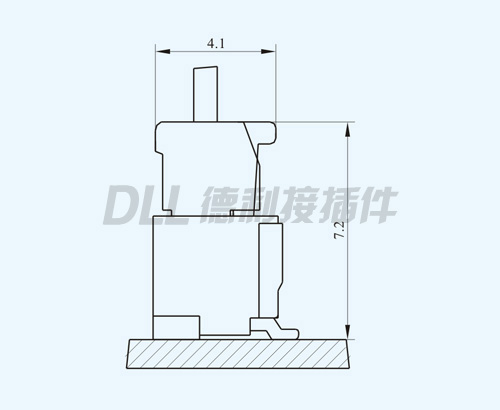

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸(mm) | ||
| A | B | |||
| 2 | GH-2Y | 1.25 | 3.75 | |
| 3 | GH-3Y | 2.50 | 5.00 | |
| 4 | GH-4Y | 3.75 | 6.25 | |
| 5 | GH-5Y | 5.00 | 7.50 | |
| 6 | GH-6Y | 6.25 | 8.75 | |
| 7 | GH-7Y | 7.50 | 10.00 | |
| 8 | GH-8Y | 8.75 | 11.25 | |
| 9 | GH-9Y | 10.00 | 12.50 | |
| 10 | GH-10Y | 11.25 | 13.75 | |
| 11 | GH-11Y | 12.50 | 15.00 | |
| 12 | GH-12Y | 13.50 | 16.25 | |
| 13 | GH-13Y | 15.00 | 17.50 | |
| 14 | GH-14Y | 16.25 | 18.75 | |
| 15 | GH-15Y | 17.50 | 20.00 | |
| 16 | GH-16Y | 18.75 | 21.25 | |
| ~ | ~ | ~ | ~ | |
| 20 | GH-20Y | 23.75 | 26.25 | |

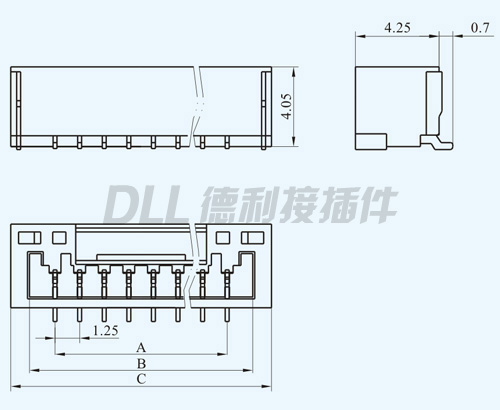

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | GH-2AB/GH-2AWB | 1.25 | 3.85 | 5.75 |
| 3 | GH-3AB/GH-3AWB | 2.50 | 5.10 | 7.00 |
| 4 | GH-4AB/GH-4AWB | 3.75 | 6.35 | 8.25 |
| 5 | GH-5AB/GH-5AWB | 5.00 | 7.60 | 9.50 |
| 6 | GH-6AB/GH-6AWB | 6.25 | 8.85 | 10.75 |
| 7 | GH-7AB/GH-7AWB | 7.50 | 10.10 | 12.00 |
| 8 | GH-8AB/GH-8AWB | 8.75 | 11.35 | 13.25 |
| 9 | GH-9AB/GH-9AWB | 10.00 | 12.60 | 14.50 |
| 10 | GH-10AB/GH-10AWB | 11.25 | 13.85 | 15.75 |
| 11 | GH-11AB/GH-11AWB | 12.50 | 15.10 | 17.00 |
| 12 | GH-12AB/GH-12AWB | 13.50 | 16.35 | 18.25 |
| 13 | GH-13AB/GH-13AWB | 15.00 | 17.60 | 19.50 |
| 14 | GH-14AB/GH-14AWB | 16.25 | 18.85 | 20.75 |
| 15 | GH-15AB/GH-15AWB | 17.50 | 20.10 | 22.00 |
| 16 | GH-16AB/GH-16AWB | 18.75 | 21.35 | 23.25 |
| ~ | ~ | ~ | ~ | ~ |
| 20 | GH-20AB/GH-20AWB | 23.75 | 26.35 | 28.25 |
