| 技術特性 | |
| 額定電壓 | 50V AC，DC |
| 額定電流 | 1A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 100M min |
| 耐壓 | 250V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 適用線規 | AWG#28?#26 |
| 材料 | |
| 孔座 | PBT UL94-V0(2) |
| SMT針座 | LCP UL94-V0 |
| 端子 | 磷青銅,鍍錫 |

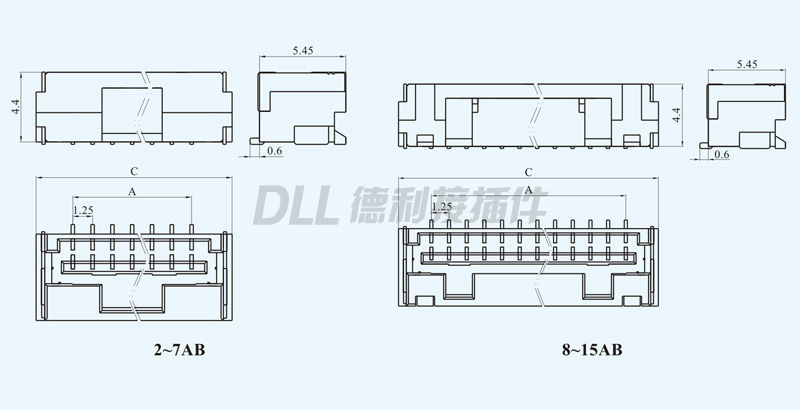

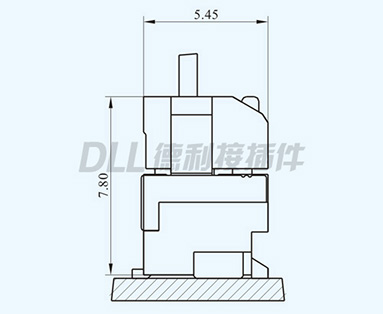

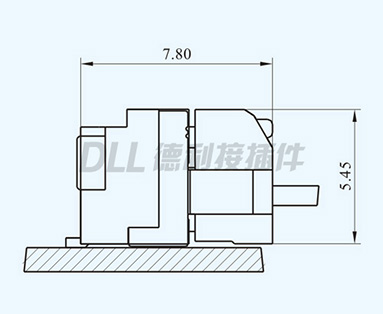

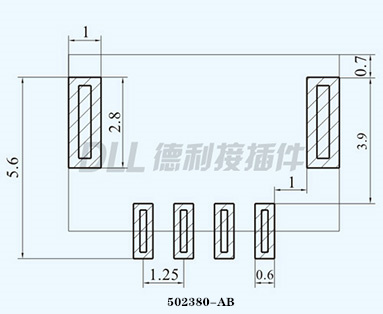

參考圖紙
Rosh
MSDS

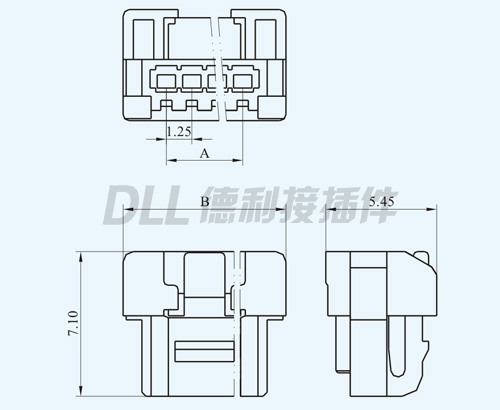

| 電路 | 類型 | 尺寸 | |||
| A | B | C | |||
| 2 | 502380-2Y | 502380-2AB/502380-2AWB | 1.25 | 5.60 | 5.85 |
| 3 | 502380-3Y | 502380-3AB/502380-3AWB | 2.50 | 6.85 | 7.10 |
| 4 | 502380-4Y | 502380-4AB/502380-4AWB | 3.75 | 8.10 | 8.35 |
| 5 | 502380-5Y | 502380-5AB/502380-5AWB | 5.00 | 9.35 | 9.60 |
| 6 | 502380-6Y | 502380-6AB/502380-6AWB | 6.25 | 10.60 | 10.85 |
| 7 | 502380-7Y | 502380-7AB/502380-7AWB | 7.50 | 11.85 | 12.10 |
| 8 | 502380-8Y | 502380-8AB/502380-8AWB | 8.75 | 13.10 | 13.35 |
| 9 | 502380-9Y | 502380-9AB/502380-9AWB | 10.00 | 14.35 | 14.60 |
| 10 | 502380-10Y | 502380-10AB/502380-10AWB | 11.25 | 15.60 | 15.85 |
| 11 | 502380-11Y | 502380-11AB/502380-11AWB | 12.50 | 16.85 | 17.10 |
| 12 | 502380-12Y | 502380-12AB/502380-12AWB | 13.50 | 18.10 | 18.35 |
| 13 | 502380-13Y | 502380-13AB/502380-13AWB | 15.00 | 19.35 | 19.60 |
| 14 | 502380-14Y | 502380-14AB/502380-14AWB | 16.25 | 20.60 | 20.85 |
| 15 | 502380-15Y | 502380-15AB/502380-15AWB | 17.50 | 21.85 | 22.10 |
| ~ | ~ | ~ | ~ | ~ | ~ |
