| 技術(shù)特性 | |
| 額定電壓 | 100V AC，DC |
| 額定電流 | 2A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 800V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| SMT針座 | LCP UL94-V0 |

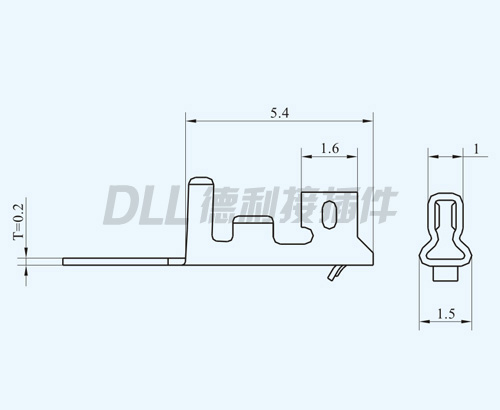

| 端子 | 磷青銅,鍍錫 |

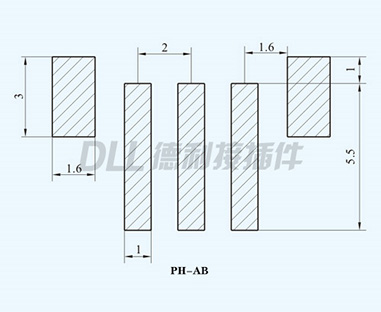

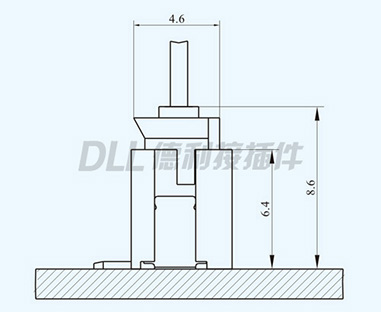

參考圖紙
Rosh
MSDS

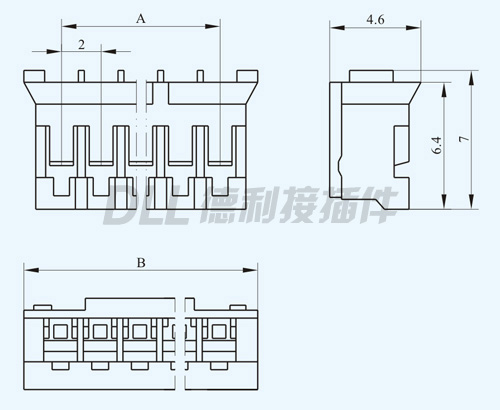

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 | PH-2Y | 2.0 | 5.9 |
| 3 | PH-3Y | 4.0 | 7.9 |
| 4 | PH-4Y | 6.0 | 9.9 |
| 5 | PH-5Y | 8.0 | 11.9 |
| 6 | PH-6Y | 10.0 | 13.9 |
| 7 | PH-7Y | 12.0 | 15.9 |
| 8 | PH-8Y | 14.0 | 17.9 |
| 9 | PH-9Y | 16.0 | 19.9 |
| 10 | PH-10Y | 18.0 | 21.9 |
| 11 | PH-11Y | 20.0 | 23.9 |
| 12 | PH-12Y | 22.0 | 25.9 |
| 13 | PH-13Y | 24.0 | 27.9 |
| 14 | PH-14Y | 26.0 | 29.9 |
| 15 | PH-15Y | 28.0 | 31.9 |
| 16 | PH-16Y | 30.0 | 33.9 |
| 17 | PH-17Y | 32.0 | 35.9 |
| 18 | PH-18Y | 34.0 | 37.9 |

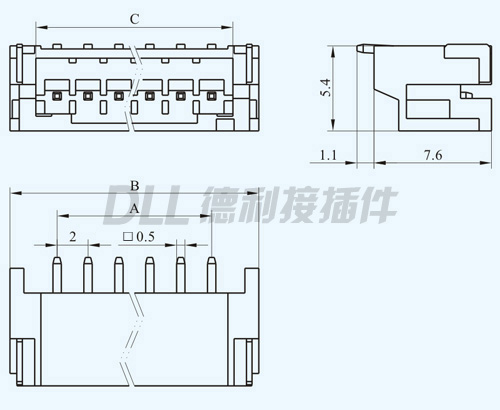

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | PH-2AB/PH-2AWB | 2.0 | 8.0 | 4.75 |
| 3 | PH-3AB/PH-3AWB | 4.0 | 10.0 | 6.75 |
| 4 | PH-4AB/PH-4AWB | 6.0 | 12.0 | 8.75 |
| 5 | PH-5AB/PH-5AWB | 8.0 | 14.0 | 10.75 |
| 6 | PH-6AB/PH-6AWB | 10.0 | 16.0 | 12.75 |
| 7 | PH-7AB/PH-7AWB | 12.0 | 18.0 | 14.75 |
| 8 | PH-8AB/PH-8AWB | 14.0 | 20.0 | 16.75 |
| 9 | PH-9AB/PH-9AWB | 16.0 | 22.0 | 18.75 |
| 10 | PH-10AB/PH-10AWB | 18.0 | 24.0 | 20.75 |
| 11 | PH-11AB/PH-11AWB | 20.0 | 26.0 | 22.75 |
| 12 | PH-12AB/PH-12AWB | 22.0 | 28.0 | 24.75 |
| 13 | PH-13AB/PH-13AWB | 24.0 | 30.0 | 26.75 |
| 14 | PH-14AB/PH-14AWB | 26.0 | 32.0 | 28.75 |
| 15 | PH-15AB/PH-15AWB | 28.0 | 34.0 | 30.75 |
| 16 | PH-16AB/PH-16AWB | 30.0 | 36.0 | 32.75 |
| 17 | PH-17AB/PH-17AWB | 32.0 | 38.0 | 34.75 |
| 18 | PH-18AB/PH-18AWB | 34.0 | 40.0 | 36.75 |
