| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| SMT針座 | LCP UL94-V0 |

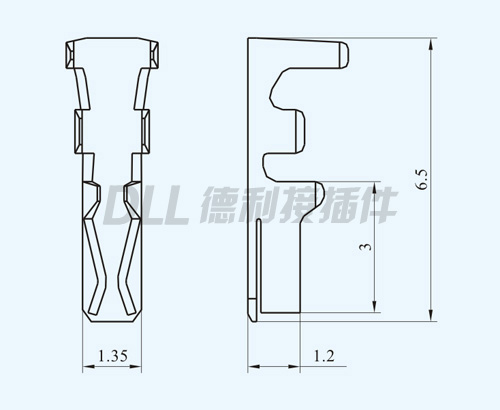

| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

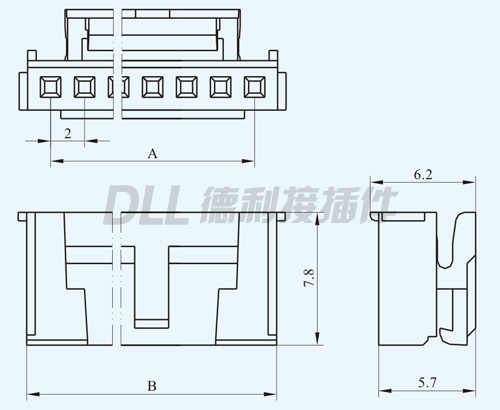

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 | HY-2Y | 2.0 | 4.7 |
| 3 | HY-3Y | 4.0 | 6.7 |
| 4 | HY-4Y | 6.0 | 8.7 |
| 5 | HY-5Y | 8.0 | 10.7 |
| 6 | HY-6Y | 10.0 | 12.7 |
| 7 | HY-7Y | 12.0 | 14.7 |
| 8 | HY-8Y | 14.0 | 16.7 |
| 9 | HY-9Y | 16.0 | 18.7 |
| 10 | HY-10Y | 18.0 | 20.7 |
| 11 | HY-11Y | 20.0 | 22.7 |
| 12 | HY-12Y | 22.0 | 24.7 |
| 13 | HY-13Y | 24.0 | 26.7 |
| 14 | HY-14Y | 26.0 | 28.7 |
| 15 | HY-15Y | 28.0 | 30.7 |
| 16 | HY-16Y | 30.0 | 32.7 |

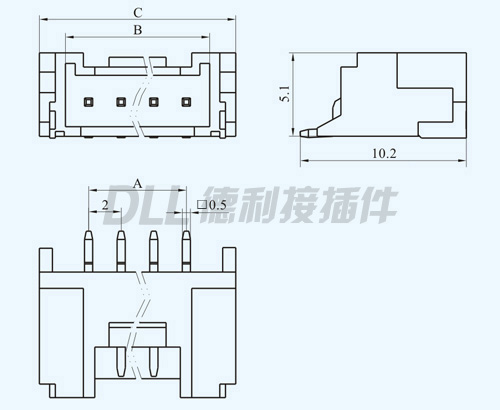

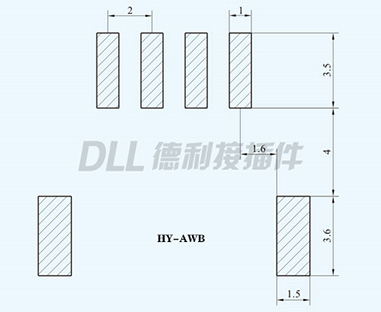

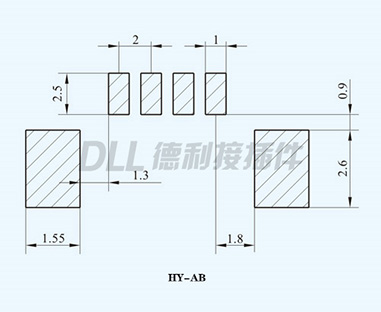

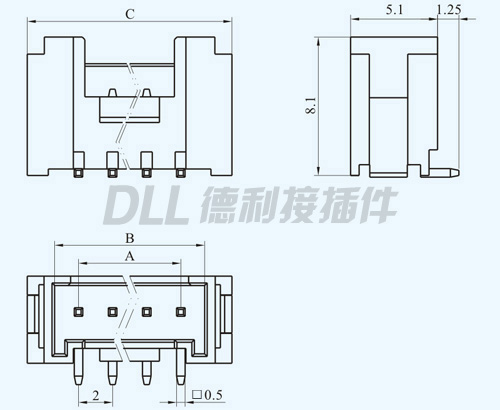

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | HY-2AB/HY-2AWB | 2.0 | 4.75 | 8.0 |
| 3 | HY-3AB/HY-3AWB | 4.0 | 6.75 | 10.0 |
| 4 | HY-4AB/HY-4AWB | 6.0 | 8.75 | 12.0 |
| 5 | HY-5AB/HY-5AWB | 8.0 | 10.75 | 14.0 |
| 6 | HY-6AB/HY-6AWB | 10.0 | 12.75 | 16.0 |
| 7 | HY-7AB/HY-7AWB | 12.0 | 14.75 | 18.0 |
| 8 | HY-8AB/HY-8AWB | 14.0 | 16.75 | 20.0 |
| 9 | HY-9AB/HY-9AWB | 16.0 | 18.75 | 22.0 |
| 10 | HY-10AB/HY-10AWB | 18.0 | 20.75 | 24.0 |
| 11 | HY-11AB/HY-11AWB | 20.0 | 22.75 | 26.0 |
| 12 | HY-12AB/HY-12AWB | 22.0 | 24.75 | 28.0 |
| 13 | HY-13AB/HY-13AWB | 24.0 | 26.75 | 30.0 |
| 14 | HY-14AB/HY-14AWB | 26.0 | 28.75 | 32.0 |
| 15 | HY-15AB/HY-15AWB | 28.0 | 30.75 | 34.0 |
| 16 | HY-16AB/HY-16AWB | 30.0 | 32.75 | 36.0 |
