| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| SMT針座 | LCP UL94-V0 |

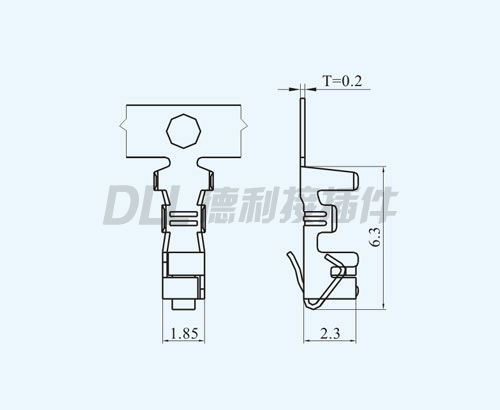

| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

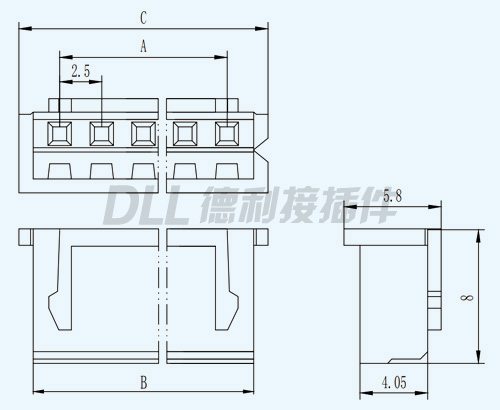

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | TJC3-2Y | 2.5 | 5.7 | 7.3 |
| 3 | TJC3-3Y | 5.0 | 8.2 | 9.8 |
| 4 | TJC3-4Y | 7.5 | 10.7 | 12.3 |
| 5 | TJC3-5Y | 10.0 | 13.2 | 14.8 |
| 6 | TJC3-6Y | 12.5 | 15.7 | 17.3 |
| 7 | TJC3-7Y | 15.0 | 18.2 | 19.8 |
| 8 | TJC3-8Y | 17.5 | 20.7 | 22.3 |
| 9 | TJC3-9Y | 20.0 | 23.2 | 24.8 |
| 10 | TJC3-10Y | 22.5 | 25.7 | 27.3 |
| 11 | TJC3-11Y | 25.0 | 28.2 | 29.8 |
| 12 | TJC3-12Y | 27.5 | 30.7 | 32.3 |
| 13 | TJC3-13Y | 30.0 | 33.2 | 34.8 |
| 14 | TJC3-14Y | 32.5 | 35.7 | 37.3 |
| 15 | TJC3-15Y | 35.0 | 38.2 | 39.8 |
| ~ | ~ | ~ | ~ | ~ |
| 20 | TJC3-20Y | 47.5 | 50.7 | 52.3 |

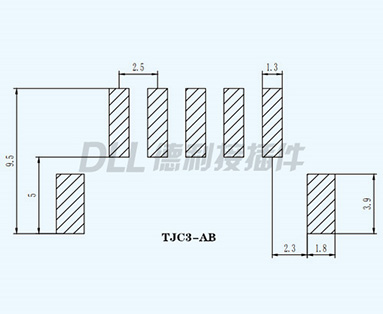

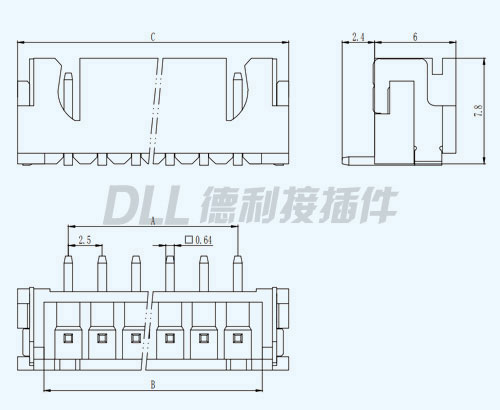

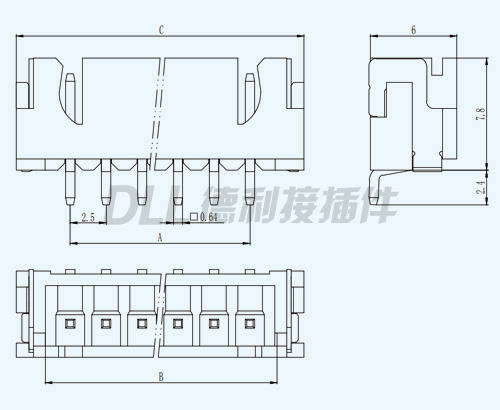

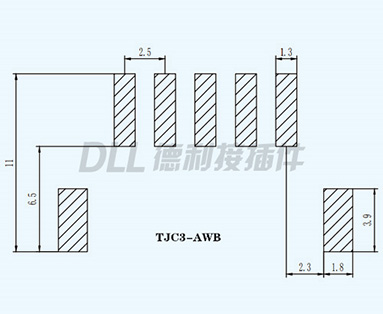

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | TJC3-2AB/TJC3-2AWB | 2.5 | 5.9 | 10.0 |
| 3 | TJC3-3AB/TJC3-3AWB | 5.0 | 8.4 | 12.5 |
| 4 | TJC3-4AB/TJC3-4AWB | 7.5 | 10.9 | 15.0 |
| 5 | TJC3-5AB/TJC3-5AWB | 10.0 | 13.4 | 17.5 |
| 6 | TJC3-6AB/TJC3-6AWB | 12.5 | 15.9 | 20.0 |
| 7 | TJC3-7AB/TJC3-7AWB | 15.0 | 18.4 | 22.5 |
| 8 | TJC3-8AB/TJC3-8AWB | 17.5 | 20.9 | 25.0 |
| 9 | TJC3-9AB/TJC3-9AWB | 20.0 | 23.4 | 27.5 |
| 10 | TJC3-10AB/TJC3-10AWB | 22.5 | 25.9 | 30.0 |
| 11 | TJC3-11AB/TJC3-11AWB | 25.0 | 28.4 | 32.5 |
| 12 | TJC3-12AB/TJC3-12AWB | 27.5 | 30.9 | 35.0 |
| 13 | TJC3-13AB/TJC3-13AWB | 30.0 | 33.4 | 37.5 |
| 14 | TJC3-14AB/TJC3-14AWB | 32.5 | 35.9 | 40.5 |
| 15 | TJC3-15AB/TJC3-15AWB | 35.0 | 38.4 | 42.5 |
| ~ | ~ | ~ | ~ | ~ |
| 20 | TJC3-20AB/TJC3-20AWB | 47.5 | 50.9 | 55.0 |
