| 技術(shù)特性 | |
| 額定電壓 | 250V AC，DC |
| 額定電流 | 3A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 1000V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| SMT針座 | LCP UL94-V0 |
| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

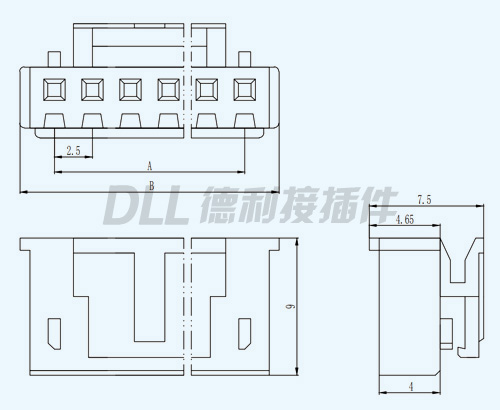

| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 | TJC3B-2Y | 2.5 | 7.0 |
| 3 | TJC3B-3Y | 5.0 | 9.5 |
| 4 | TJC3B-4Y | 7.5 | 12.0 |
| 5 | TJC3B-5Y | 10.0 | 14.5 |
| 6 | TJC3B-6Y | 12.5 | 17.0 |
| 7 | TJC3B-7Y | 15.0 | 19.5 |
| 8 | TJC3B-8Y | 17.5 | 22.0 |
| 9 | TJC3B-9Y | 20.0 | 24.5 |
| 10 | TJC3B-10Y | 22.5 | 27.0 |
| 11 | TJC3B-11Y | 25.0 | 29.5 |
| 12 | TJC3B-12Y | 27.5 | 32.0 |
| 13 | TJC3B-13Y | 30.0 | 34.5 |
| 14 | TJC3B-14Y | 32.5 | 37.0 |
| 15 | TJC3B-15Y | 35.0 | 39.5 |

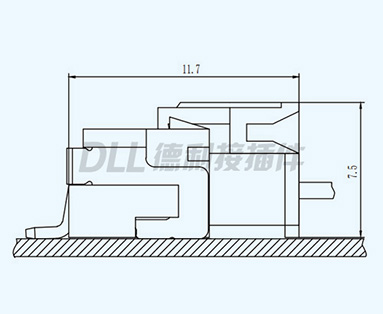

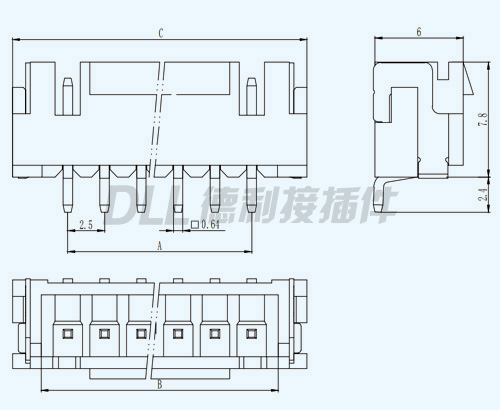

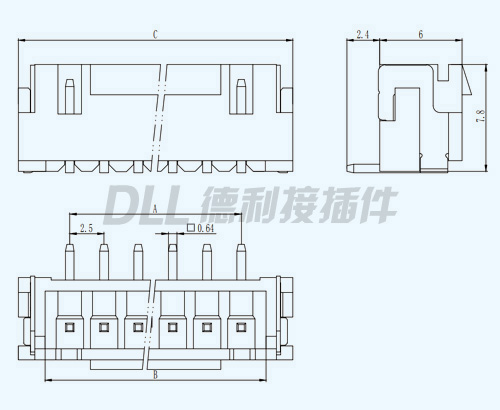

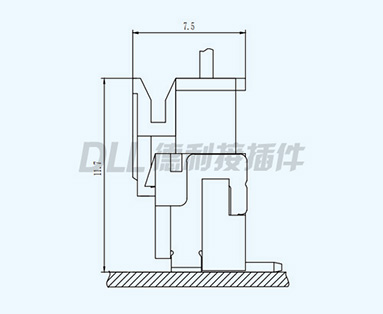

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||

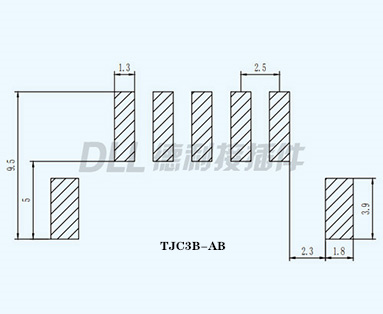

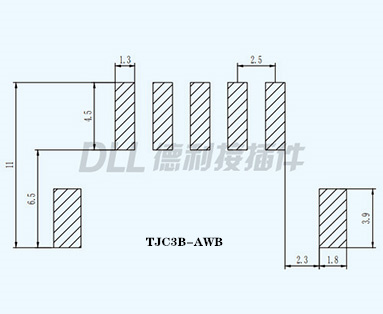

| 2 | TJC3B-2AB/TJC3B-2AWB | 2.5 | 5.9 | 10.0 |
| 3 | TJC3B-3AB/TJC3B-3AWB | 5.0 | 8.4 | 12.5 |
| 4 | TJC3B-4AB/TJC3B-4AWB | 7.5 | 10.9 | 15.0 |
| 5 | TJC3B-5AB/TJC3B-5AWB | 10.0 | 13.4 | 17.5 |
| 6 | TJC3B-6AB/TJC3B-6AWB | 12.5 | 15.9 | 20.0 |
| 7 | TJC3B-7AB/TJC3B-7AWB | 15.0 | 18.4 | 22.5 |
| 8 | TJC3B-8AB/TJC3B-8AWB | 17.5 | 20.9 | 25.0 |
| 9 | TJC3B-9AB/TJC3B-9AWB | 20.0 | 23.4 | 27.5 |
| 10 | TJC3B-10AB/TJC3B-10AWB | 22.5 | 25.9 | 30.0 |
| 11 | TJC3B-11AB/TJC3B-11AWB | 25.0 | 28.4 | 32.5 |
| 12 | TJC3B-12AB/TJC3B-12AWB | 27.5 | 30.9 | 35.0 |
| 13 | TJC3B-13AB/TJC3B-13AWB | 30.0 | 33.4 | 37.5 |
| 14 | TJC3B-14AB/TJC3B-14AWB | 32.5 | 35.9 | 40.5 |
| 15 | TJC3B-15AB/TJC3B-15AWB | 35.0 | 38.4 | 42.5 |
