| 技術(shù)特性 | |
| 額定電壓 | 30V AC，DC |
| 額定電流 | 1A AC, DC |
| 接觸電阻 | 30m max |
| 絕緣電阻 | 100M min |
| 耐壓 | 200V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | LCP UL94V-0 |
| SMT針座 | LCP UL94V-0 |

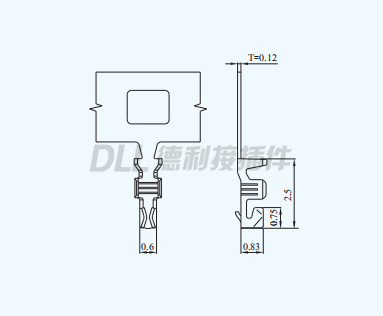

| 端子 | 磷青銅,鍍錫 |

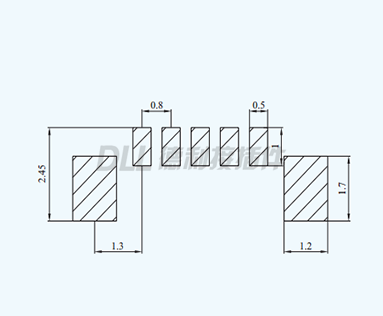

參考圖紙
Rosh
MSDS

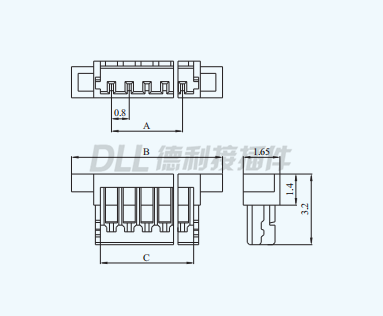

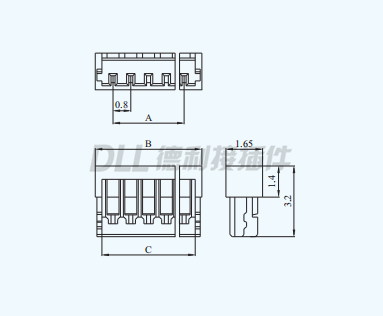

| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||

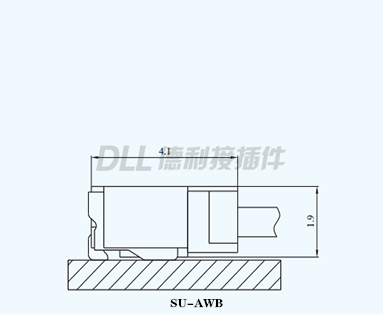

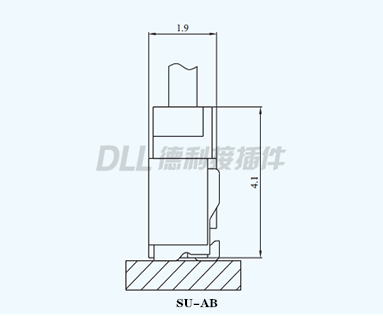

| 2 | SU-2AB/SU-2AWB | 0.80 | 3.80 | 1.90 |
| 3 | SU-3AB/SU-3AWB | 1.60 | 4.60 | 2.70 |
| 4 | SU-4AB/SU-4AWB | 2.40 | 5.40 | 3.50 |
| 5 | SU-5AB/SU-5AWB | 3.20 | 6.20 | 4.30 |
| 6 | SU-6AB/SU-6AWB | 4.00 | 7.00 | 5.10 |
| 7 | SU-7AB/SU-7AWB | 4.80 | 7.80 | 5.90 |
| 8 | SU-8AB/SU-8AWB | 5.60 | 8.60 | 6.70 |
| 9 | SU-9AB/SU-9AWB | 6.40 | 9.40 | 7.50 |
| 10 | SU-10AB/SU-10AWB | 7.20 | 10.20 | 8.30 |
| 11 | SU-11AB/SU-11AWB | 8.00 | 11.00 | 9.10 |
| 12 | SU-12AB/SU-12AWB | 8.80 | 11.80 | 9.90 |
| 13 | SU-13AB/SU-13AWB | 9.60 | 12.60 | 10.70 |
| 14 | SU-14AB/SU-14AWB | 10.40 | 13.40 | 11.50 |
| 15 | SU-15AB/SU-15AWB | 11.20 | 14.20 | 12.30 |
| ~ | ~ | ~ | ~ | ~ |
| 20 |
SU-20AB/SU-20AWB |
15.20 | 18.20 | 16.30 |

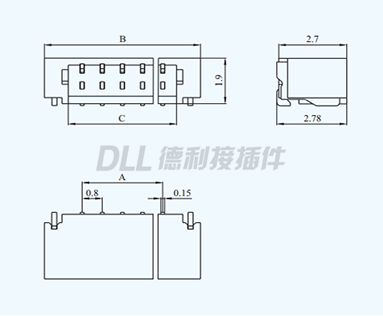

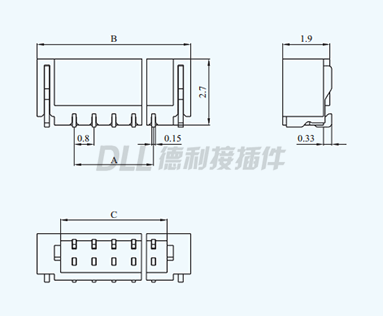

| 電路 | 類型 | 尺寸(mm) | |||
| A | B | C | |||
| 2 | SU-2Y/SU-2YF | 0.80 | 4.40 | 1.80 | |
| 3 | SU-3Y/SU-3YF | 1.60 | 5.20 | 2.60 | |
| 4 | SU-4Y/SU-4YF | 2.40 | 6.00 | 3.40 | |
| 5 | SU-5Y/SU-5YF | 3.20 | 6.80 | 4.20 | |
| 6 | SU-6Y/SU-6YF | 4.00 | 7.60 | 5.00 | |
| 7 | SU-7Y/SU-7YF | 4.80 | 8.40 | 5.80 | |
| 8 | SU-8Y/SU-8YF | 5.60 | 9.20 | 6.60 | |
| 9 | SU-9Y/SU-9YF | 6.40 | 10.00 | 7.40 | |
| 10 | SU-10Y/SU-10YF | 7.20 | 10.80 | 8.20 | |
| 11 | SU-11Y/SU-11YF | 8.00 | 11.60 | 9.00 | |
| 12 | SU-12Y/SU-12YF | 8.80 | 12.40 | 9.80 | |
| 13 | SU-13Y/SU-13YF | 9.60 | 13.20 | 10.60 | |
| 14 | SU-14Y/SU-14YF | 10.40 | 14.00 | 11.40 | |
| 15 | SU-15Y/SU-15YF | 11.20 | 14.80 | 12.20 | |
| ~ | ~ | ~ | ~ | ~ | |
| 20 |
SU-20Y/SU-20YF |
15.20 | 18.80 | 16.20 | |
